Fandi StoreDin Rail Dual Power Automatic Transfer Switch 2P 63A 230V PV Solar System ATS
Fast 50ms dual power switching for PV and generator systems
1You orderSecure checkout on 2We ship in 24hFrom a US warehouse3It arrives trackedFollow it from your account

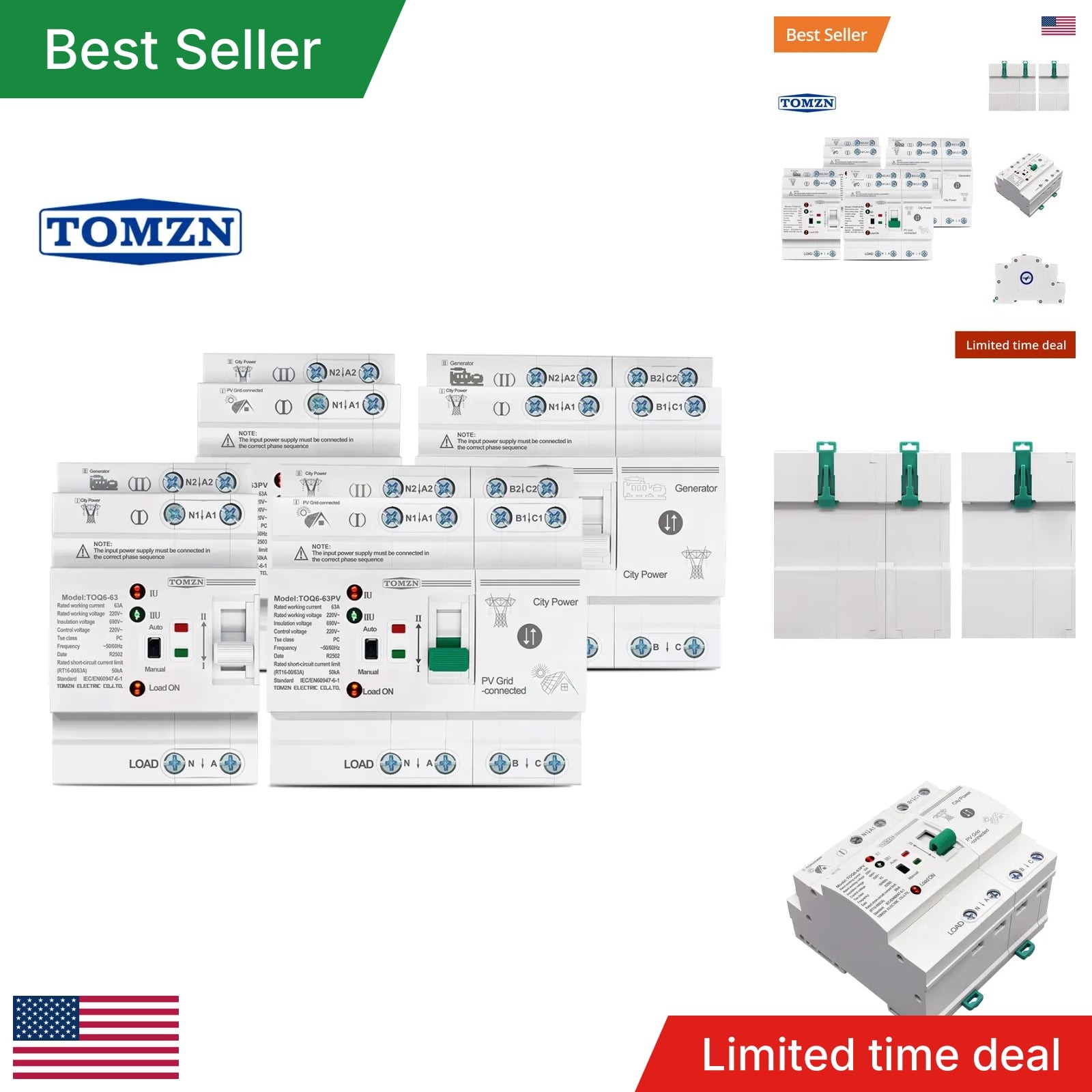

The TOQ6-63 Din Rail Automatic Transfer Switch is a compact, high-performance dual power selector designed for seamless switching between two independent power sources. Whether you're managing solar PV systems with inverters or coordinating city power with backup generators, this ATS switch delivers fast, reliable power transfer in under 50 milliseconds—keeping your critical loads running without interruption.
Main Features
- Ultra-fast switching: Changeover in less than 50ms with zero power interruption
- Dual power capability: Automatically selects between two independent AC sources
- High short-circuit rating: 50kA rated short-circuit current for maximum protection
- PC class operation: Can switch under full load without generating short-circuit current
- Compact Din rail mount: Space-saving design fits standard 35mm Din rails
- Wide voltage tolerance: Operates reliably at 85%–110% of rated control voltage
- Long mechanical life: Over 5,000 switching cycles rated for durability
Technical Specifications
- Model: TOQ6-63 (2-pole or 4-pole variants available)
- Rated voltage: AC 220–240V, 50–60Hz
- Rated current: 63A
- Rated insulation voltage: 690V
- Impulse withstand voltage: 8kV
- Control voltage: AC 220V, 50Hz (auxiliary circuit: 5A max)
- Switching time: Less than 50ms (changeover, operation, return, and power-off)
- Electrical life: ≥1,500 cycles
- Usage category: AC-31B
- Short-circuit protection: RT 16-00-63A fuse compatible
- Case grade: 80 (high-impact plastic housing)
- Certification: CE marked for EU compliance
Package Includes
- 1x TOQ6-63 Automatic Transfer Switch (2P or 4P)
- Din rail mounting hardware
- Terminal connection blocks
- Installation documentation
Why Choose Us
- Trusted by professionals: TOMZN brand recognized for industrial-grade electrical components
- Fast, secure shipping: Reliable delivery to your location
- CE certified: Meets European safety and performance standards
- Technical support: Assistance available for installation and troubleshooting
- Competitive pricing: Industrial-quality ATS at accessible cost
Upgrade your power management system with this reliable automatic transfer switch. Perfect for solar installations, backup power systems, and industrial applications requiring fast, automatic source switching. Order today and experience seamless dual-power operation.
