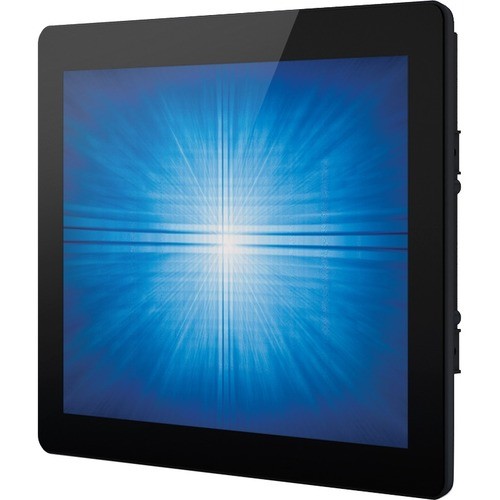

Elo 1590L 15" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms - 15" Viewable - Projected Capacitive - Multi-touch Screen - 1024 x 768 - XGA - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - 3 Year

The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected. Touch ready. The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW. Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. Other features. Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing Display Port and VGA video interfaces 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
ManufacturerElo Touch Solutions, Inc Manufacturer Part NumberE334335 Brand NameElo Product Model1590L Product Name1590L 15" Open Frame Touchscreen (Rev B) Product TypeOpen-frame LCD Touchscreen Monitor Technical Information Screen Size Class15" Viewable Screen Size15" Screen ModeXGA Response Time16 ms Aspect Ratio4:3 Mount TypeRear Mount,Flush Mount Backlight TechnologyLED Video Maximum Resolution1024 x 768 Color Supported16.2 Million Colors Contrast Ratio700:1 Brightness250 Nit Touchscreen Information Touchscreen TypeProjected Capacitive Multi-touch ScreenYes Interfaces/Ports HDMIYes USBYes VGAYes DisplayPortYes Power Description Operating Power Consumption12.50 W Physical Characteristics VESA Mount CompatibleYes Product ColorBlack Height11.2" Width14.1" Depth1.4" Weight (Approximate)6.40 lb Miscellaneous Package Contents 1590L 15" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide Brackets and w/Screws EEI Label Japan Class-B TM info sheet Certifications & Standards T?V Environmentally FriendlyYes Environmental ComplianceRestriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) Warranty Limited Warranty3 Year WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
