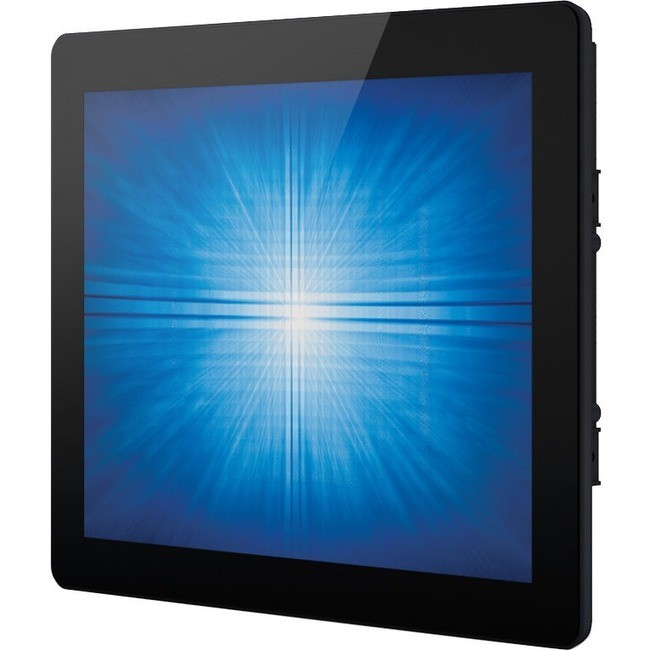

Elo 1590L 15" Class Open-frame LCD Touchscreen Monitor 4:3 16 ms Brand: Elo Touch Solutions UPC: 0815335025785 Mfr Part #: E326154

General InformationThe Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

• Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
• Display Port and VGA video interfaces
• 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities

Technical InformationScreen Size Class:15"Viewable Screen Size:15"Screen Mode:XGAResponse Time:16 msAspect Ratio:4:3Mount Type:Rack-mountableMount Type:Front MountBacklight Technology:LED

VideoMaximum Resolution:1024 x 768Color Supported:16.2 Million ColorsContrast Ratio:700:1Brightness:250 Nit

Touchscreen InformationTouchscreen Type:5-wire Resistive

Power DescriptionOperating Power Consumption:12.50 W

Physical CharacteristicsVESA Mount Compatible:YesProduct (Approximate):6.40 lb

1590L 15" Open Frame Touchscreen (Rev B)

HDMI cable

VGA Cable

RJ45 OSD Remote

Touch USB Cable

User Manual CD

Quick Install Guide

"L" (Side Mount) Brackets and w/Screws

EEI Label

Japan Class-B TM info sheet

Certifications & Standards:

T?V

Environmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)Environmental Compliance:China Restriction of Hazardous Substances (China RoHS)Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)
