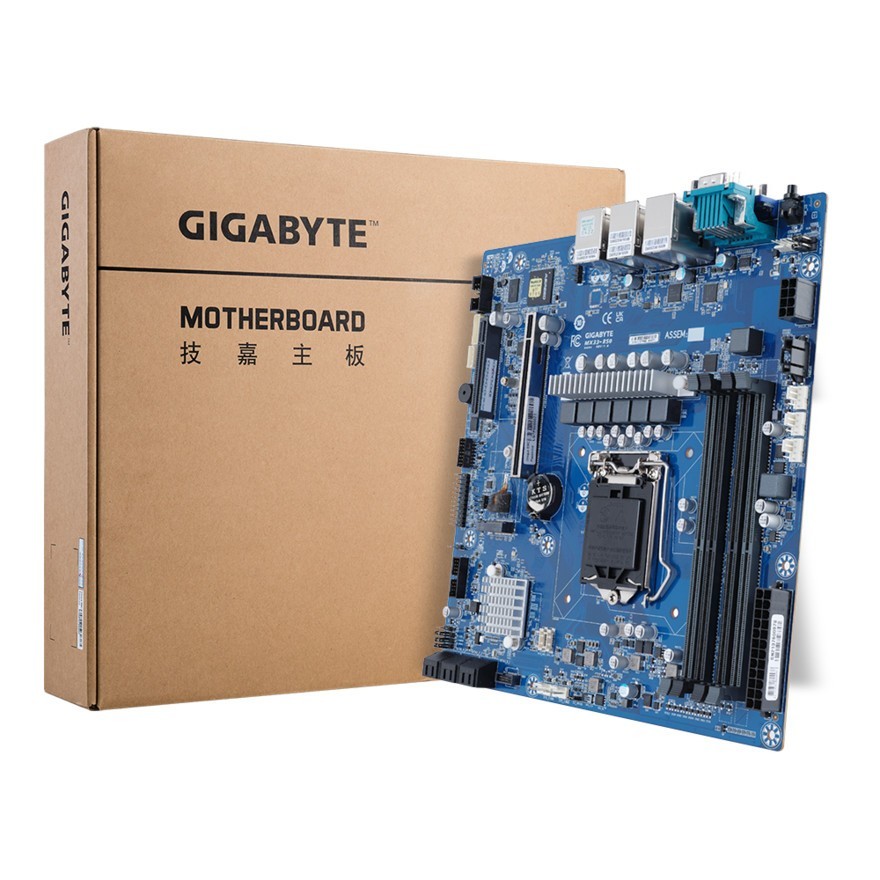

Gigabyte MX33-BS0 LGA1200 C252 Motherboard Support Intel Xeon E-2300 CPU 10th

Board Size

Micro-ATX
244W x 244D mm

Processor Supported

Intel®XeonE-2300 Processor
10th Gen IntelPentiumProcessor
CPU TDP up to 95W

Socket

1 x LGA 1200
Socket H5

Chipset Description

IntelC252 Chipset

Memory Type

4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Total capacity up to 128GB
Supported speeds: 3200/2666 MHz

Expansion Slot

1 x PCIe x16 (Gen4 x16 bus) slot, from CPU*
1 x PCIe x8 (Gen4 x4 bus) slot, from CPU**

* NOTE: Gen3 x16 supported if installed Intel®Pentium®Processor
** NOTE: Function not available if installed Intel®Pentium®Processor

1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports 2242/2280 cards

On-Board Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x M.2 slot
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x COM2 header
1 x back panel connector
1 x TPM header
1 x Front panel header
1 x JTAG BMC header
1 x Case Open header
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x Clear CMOS jumper
1 x S3 mask jumper
1 x IPMB connector
1 x PMBus connector
1 x Buzzer

Rear I/O Connectors

1 x COM
1 x VGA
2 x RJ45
1 x MLAN
2 x USB 3.2 Gen2
4 x USB 2.0
1 x ID switch

PSU Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Operating Properties

Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
