Board Size
Micro-ATX
244W x 244D mm
Processor Supported
Intel®Xeon®E-2300 Processor
10th Gen Intel®Pentium®Processor
CPU TDP up to 95W
Socket
1 x LGA 1200
Socket H5
Chipset Description
Intel®C252 Chipset
Memory Type
4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Total capacity up to 128GB
Supported speeds: 3200/2666 MHz
Integrated Network
2 x GbE LAN ports (2 x Intel®I210-AT)
1 x 10/100/1000 management LAN
Integrated Video Controller
Integrated in Aspeed®AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Integrated Audio Controller
Optional
Integrated SAS Controller
N/A
Integrated SATA Controller
6 x SATA 6Gb/s ports
Support RAID Function
Intel®SATA RAID 0/1/10/5
Expansion Slot
1 x PCIe x16 (Gen4 x16 bus) slot, from CPU*
1 x PCIe x8 (Gen4 x4 bus) slot, from CPU**
* NOTE: Gen3 x16 supported if installed Intel®Pentium®Processor
** NOTE: Function not available if installed Intel®Pentium®Processor
1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports 2242/2280 cards
On-Board Connector
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x M.2 slot
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x COM2 header
1 x back panel connector
1 x TPM header
1 x Front panel header
1 x JTAG BMC header
1 x Case Open header
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x Clear CMOS jumper
1 x S3 mask jumper
1 x IPMB connector
1 x PMBus connector
1 x Buzzer
Rear I/O Connectors
1 x COM
1 x VGA
2 x RJ45
1 x MLAN
2 x USB 3.2 Gen2
4 x USB 2.0
1 x ID switch
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit:CTM010
OS Driver Supported
Windows Server 2019 (x64)
Windows Server 2016 (x64)
Red Hat Enterprise Linux 7.3 (x64)
Red Hat Enterprise Linux 6.9 (x64)
SUSE Linux Enterprise Server 12.2 (x64)
SUSE Linux Enterprise Server 11.2 (x64)
Ubuntu 18.04.2 LTS (x64)
Ubuntu 16.04.6 LTS (x64)
VMware 6.5
Server Management
Aspeed®AST2500 management controller
AMI MegaRAC SP-X Solution Web interface
·JAVA Based Serial Over LAN
·HTML5 KVM
·Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
·Sensor Reading History Data
·FRU Information
·SEL Log in Linear Storage / Circular Storage Policy
·Hardware Inventory
·Fan Profile
·System Firewall
·Power Consumption
·Power Control
·LDAP / AD / RADIUS Support
·Backup & Restore Configuration
·Remote BIOS/BMC/CPLD Update
·Event Log Filter
·User Management
·Media Redirection Settings
·PAM Order Settings
·SSL Settings
·SMTP Settings
PSU Connector
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Bundle

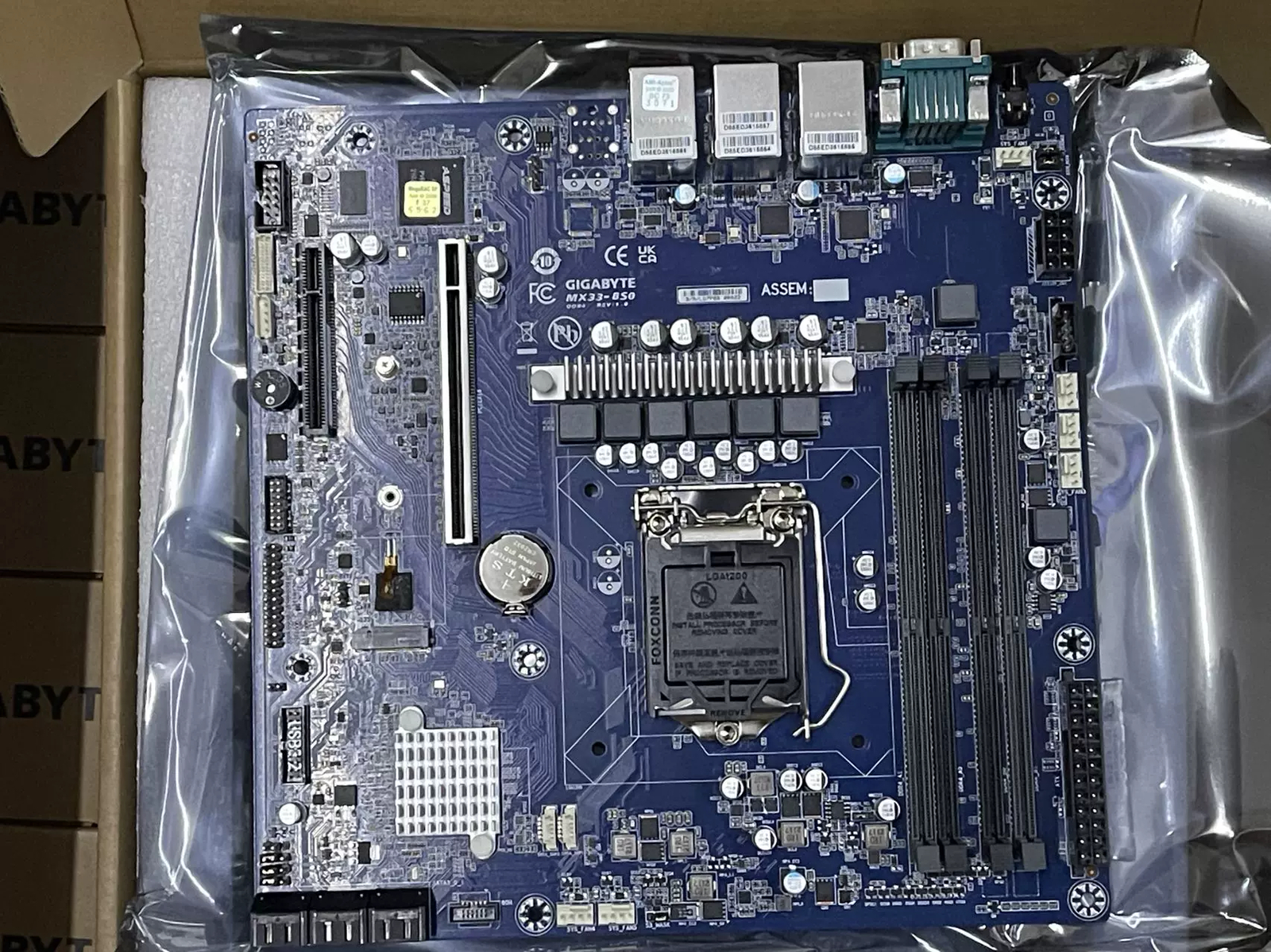

1 x MX33-BS0
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables
Box dimensions: 321 x 308.5 x 78.5 mm
Bulk Packaging Content
10 x MX33-BS0
10 x I/O shields
Carton dimensions: 609 x 581 x 362 mm
Ordering Information
Retail: 9MX33BS0MR-00-1*
Bulk: 9MX33BS0NR-00-1*
Part numbers:
- I/O shield: 12AIO-MX23C0-10R
- SATA cable: 12CF1-2SAT1B-01R
Optional parts:
