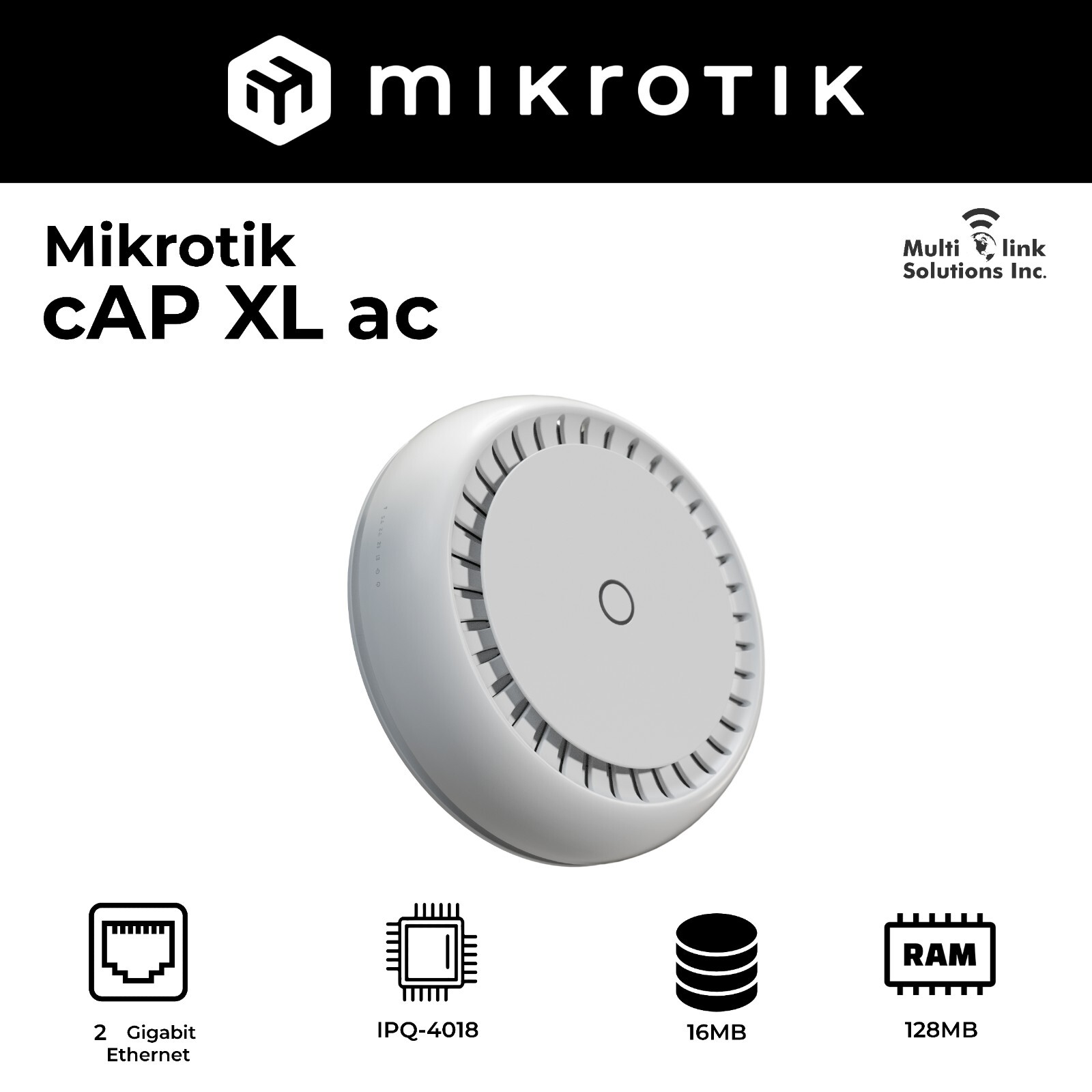

Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.
The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!
The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.
Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.
Specifications Details Product code RBcAPGi-5acD2nD-XL Architecture ARM 32bit CPU IPQ-4018 CPU core count 4 CPU nominal frequency 716 MHz RouterOS license 4 Operating System RouterOS Size of RAM 128 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100'000 hours at 25C Tested ambient temperature -40°C to 70°C IPsec hardware acceleration Yes Wireless capabilities Details Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 6 Wireless 2.4 GHz chip model IPQ-4018 Wireless 2.4 GHz generation Wi-Fi 4 Wireless 5 GHz Max data rate 867 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n/ac Antenna gain dBi for 5 GHz 5.5 Wireless 5 GHz chip model IPQ-4018 Wireless 5 GHz generation Wi-Fi 5 AC speed AC1200 Ethernet Details 10/100/1000 Ethernet ports 2 Number of 1G Ethernet ports with PoE-out 1 Powering Details Number of DC inputs 1 (PoE-IN) Max power consumption 24 W Max power consumption without attachments 11 W FAN count Passive PoE in 802.3af/at PoE in input Voltage 18-57 V PoE-out Details PoE-out ports Ether2 PoE out Passive PoE up to 57V Max out per port output (input 18-30 V) 500 mA Max out per port output (input 30-57 V) 330 mA Max total out (A) 500 mA Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS Other Details Mode button Yes Wireless specifications 2.4 GHz Transmit (dBm) Receive Sensitivity 1MBit/s 26 -100 11MBit/s 26 -94 6MBit/s 26 -96 54MBit/s 23 -78 MCS0 26 -96 MCS7 22 -73 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 26 -96 54MBit/s 21 -80 MCS0 26 -96 MCS7 20 -75 MCS9 18 -70
