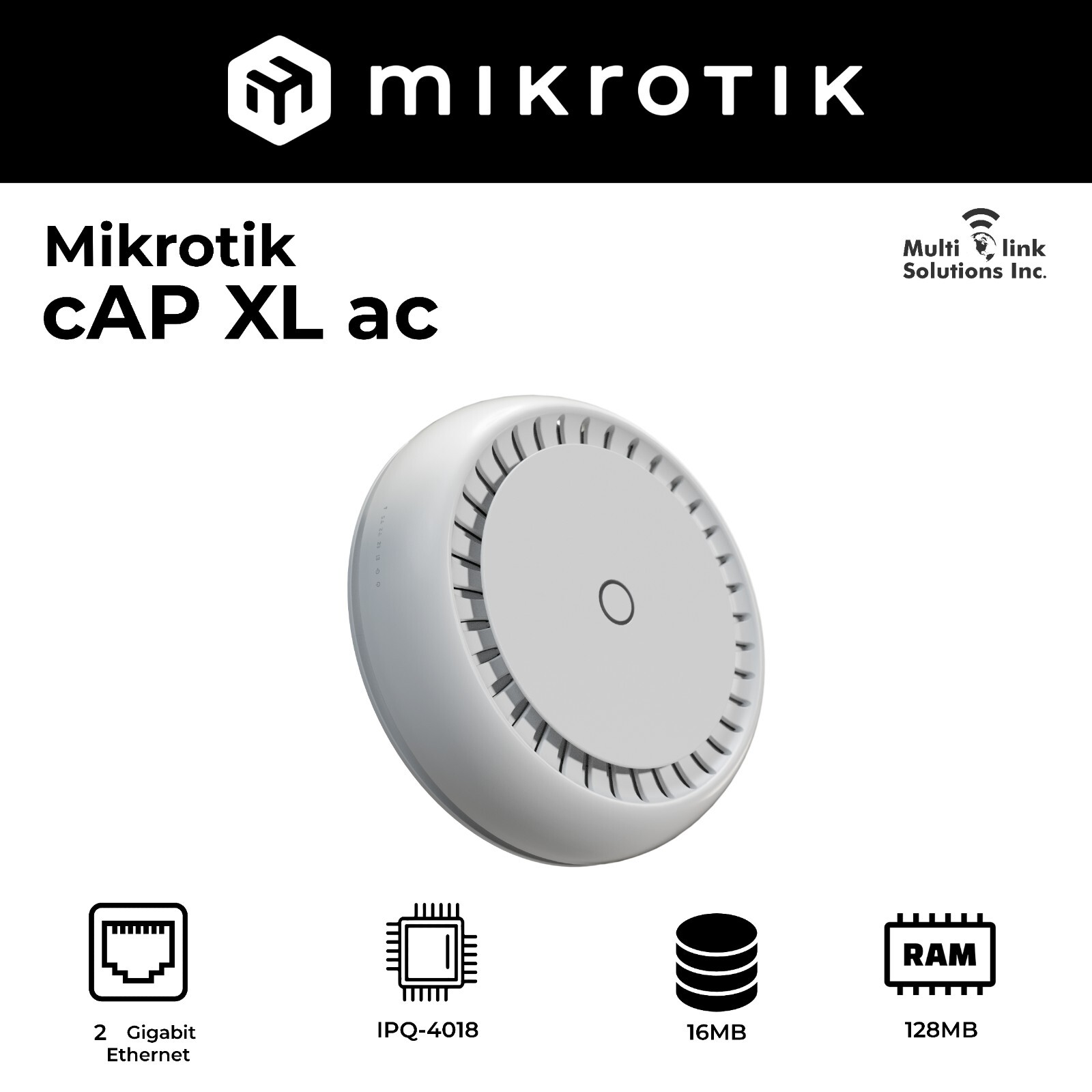

Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.
The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!
The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.
Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.
SpecificationsDetailsProduct 32bitCPUIPQ-4018CPU core count4CPU nominal frequency716 MHzRouterOS license4Operating SystemRouterOSSize of RAM128 MBStorage size16 MBStorage typeFLASHMTBFApproximately 100'000 hours at 25CTested ambient temperature-40°C to 70°CIPsec hardware accelerationYesWireless capabilitiesDetailsWireless 2.4 GHz Max data rate300 Mbit/sWireless 2.4 GHz number of chains2Wireless 2.4 GHz standards802.11b/g/nAntenna gain dBi for 2.4 GHz6Wireless 2.4 GHz chip modelIPQ-4018Wireless 2.4 GHz generationWi-Fi 4Wireless 5 GHz Max data rate867 Mbit/sWireless 5 GHz number of chains2Wireless 5 GHz standards802.11a/n/acAntenna gain dBi for 5 GHz5.5Wireless 5 GHz chip modelIPQ-4018Wireless 5 GHz generationWi-Fi 5AC speedAC1200EthernetDetails10/100/1000 Ethernet ports2Number of 1G Ethernet ports with PoE-out1PoweringDetailsNumber of DC inputs1 (PoE-IN)Max power consumption24 WMax power consumption without attachments11 WFAN countPassivePoE in802.3af/atPoE in input Voltage18-57 VPoE-outDetailsPoE-out portsEther2PoE outPassive PoE up to 57VMax out per port output (input 18-30 V)500 mAMax out per port output (input 30-57 V)330 mAMax total out (A)500 mACertification & ApprovalsDetailsCertificationCE, FCC, IC, EAC, ROHSOtherDetailsMode buttonYesWireless specifications2.4 GHzTransmit (dBm)Receive GHzTransmit (dBm)Receive
