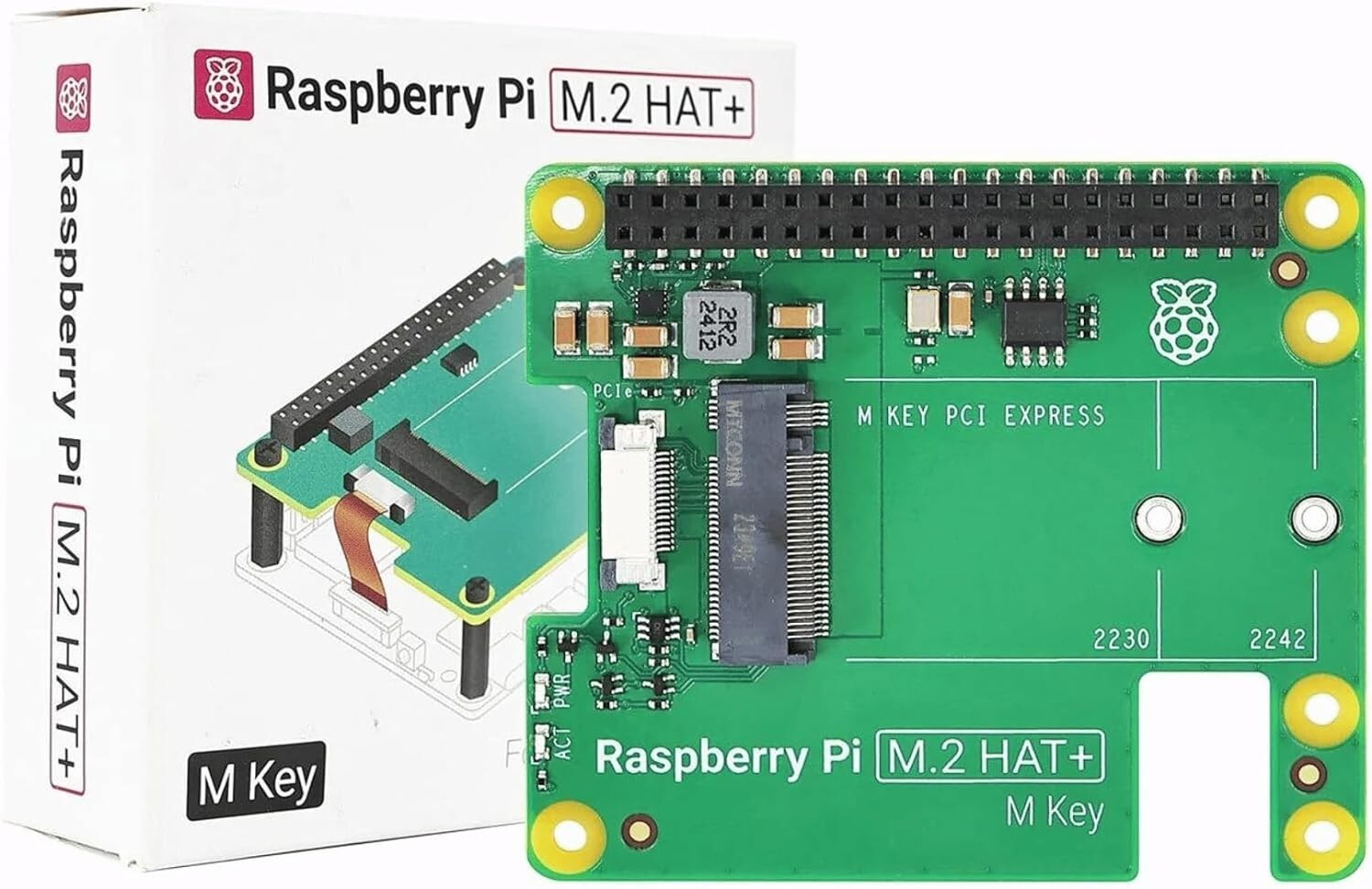

Brand New - Raspberry Pi 5 M.2 HAT+
Compatible with M.2 M key edge connector, in the 2230 and 2242 form factorsGreat for adding M.2 SSD storage to your Raspberry Pi 5!Please check out my store for other essential Raspberry Pi accessories!Overview

Raspberry Pi 5’s single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5mm- pitch FPC connector; the M.2 HAT+ M Key is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices that have the M.2 M key edge connector, in the 2230 and 2242 form factors. It is capable of supplying up to 3A to connected M.2 devices.

The Raspberry Pi M.2 HAT+ conforms to the Raspberry Pi HAT+ specification and is autodetected by the latest Raspberry Pi software/firmware. It is supplied with a 16mm stacking header and threaded spacers, so it can be fitted to a Raspberry Pi 5 with the Raspberry Pi Active Cooler in place.

Specifications

Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)

Supports devices that use the M.2 M key edge connector • Supports M.2 2230 or 2242 form factor
Capable of supplying up to 3A to connected M.2 devices • Includes power and activity LEDs

Conforms to the Raspberry Pi HAT+ specification

Supplied with ribbon cable, 16mm stacking header, threaded spacers and screws, and knurled double-flanged screw to secure and support the M.2 peripheral
