Brand New Raspberry Pi Debug Probe (SC0889)
Please check out my store for other essential Raspberry Pi accessories!
PRODUCT INFORMATIONA complete debug hardware solution for Arm-based microcontrollers, powered by RP2040. Featuring a USB to two-wire serial debug bridge and a USB to UART bridge, the Debug Probe makes it easy to use devices such as Raspberry Pi Pico with a range of host platforms including PC, Mac, and typical Linux computers.

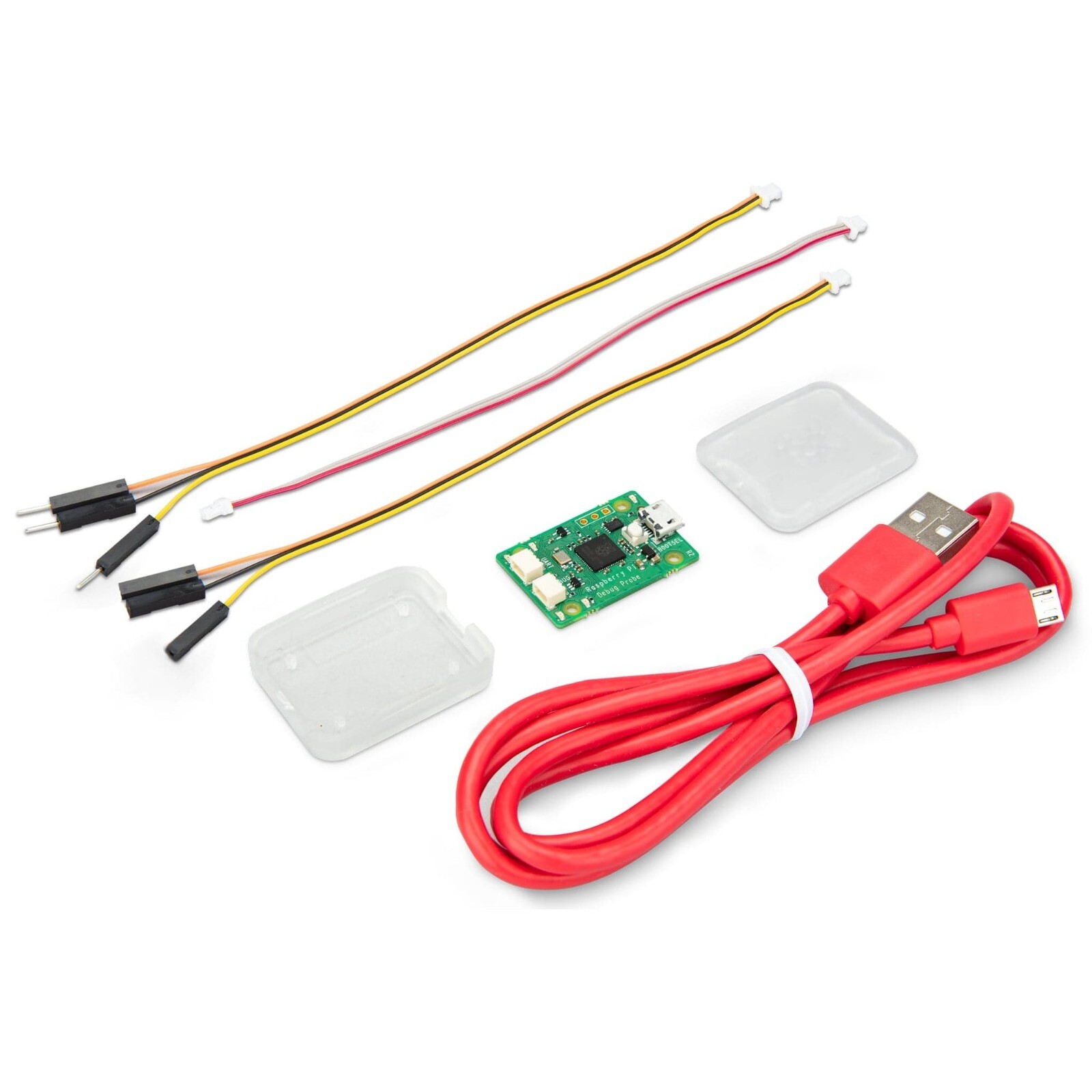

The Raspberry Pi Debug Probe is a kit comprising the Debug Probe hardware in its own plastic case together with a USB cable and three types of debug cable, covering the vast majority of debug use cases. It is designed to make it easy to debug and program Raspberry Pi Pico and RP2040 with a range of host platforms including Windows, Mac, and typical Linux computers, where you don’t have a GPIO header to connect directly to the Pico’s serial UART or SWD port.

• Form factor: 22mm × 32mm
• USB to two-wire serial debug bridge (Arm Serial Wire Debug supported by default)
• USB to UART bridge
• Compatible with the CMSIS-DAP standard
• Works with OpenOCD and other tools supporting CMSIS-DA
• Includes a high-quality transparent plastic case
• Includes a USB cable and three debug cables: 3-pin JST connector to 3-pin JST connector cable; 3-pin JST connector to 0.1-inch header (female); 3-pin JST connector to 0.1-inch header (male)
• Nominal I/O voltage: 3.3V
