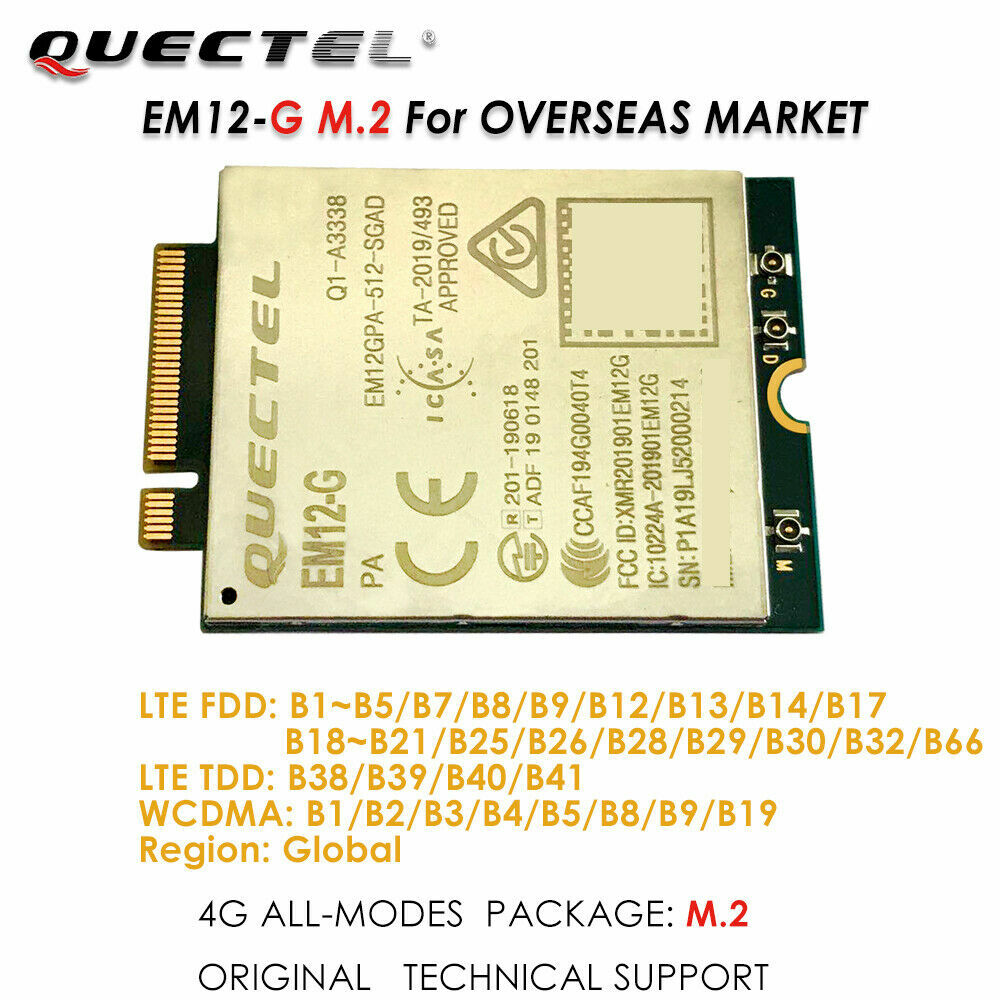

OverviewQuectel EM12-G IOT/M2M-Optimized LTE-A Cat 12 M.2 Module for GlobalEP06-A Mini PCIe

• LTE FDD: class="lia">LTE TDD: B38/B39/B40/B41
• WCDMA: B1/B2/B3/B4/B5/B8/B9/B19
• Region: Global

Introduction of Quectel EM12-G IOT/M2M-Optimized LTE-A Cat 12 M.2 Module for Global

• Quectel EM12-G is LTE Advanced category 12 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 12 LTE technology, it delivers M2M-optimized speeds of 600Mbps downlink and 150Mbps uplink peak data rates. De-signed in the M.2 form factor, EM12 is compatible with Quectel Cat6 module EM06 and future Cat 16 module EM16, which will facilitate customers to migrate between different categories.


• EM12-G is designed for global and nearly covers all the main stream carriers worldwide.


• EM12-G supports Qualcomm® IZat™ location technology Gen9HT Lite (GPS, GLONASS, BeiDou, Galileo). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.


• A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7, Win-dows 8/8.1, Windows 10, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M and IoT appli-cations such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc.

Key Benefits of Quectel EM12-G IOT/M2M-Optimized LTE-A Cat 12 M.2 Module for Global

1. LTE-A Cat 12 module with M.2 form factor, optimized for eMBB and IoT applications
2. Support DL 3x carrier aggregation and 256QAM
3. Worldwide LTE-A and UMTS/HSPA+ coverage
4. Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
5. Feature refinements: supports DFOTA and VoLTE
6. MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

Specification of Quectel EM12-G IOT/M2M-Optimized LTE-A Cat 12 M.2 Module for Global

1. Package

• M.2

2. Dimensions

• 42mm x 30mm x 2.3mm

3. 4G

• LTE Cat 12

4. Frequency

• LTE-FDD: B38/B39/B40/B41
• 2x B4+B12+B30, B4+B29+B30;
• 2 intra-band plus inter-band intra-band B1/B2/B3/B4/B5/B8/B9/B19;

4. Weight(g)

• 6.0

5. Operation Temperature

• -40°C to +85°C

6. Control via AT Commands

• 3GPP TS 27.005, 3GPP TS 27.007 and Quectel Enhanced AT Commands

7. Data Transmission

• LTE
  LTE-FDD: Max 600Mbps (DL)/Max 150Mbps(UL)
  LTE-TDD: Max 430Mbps (DL)/Max 30Mbps(UL)
• UMTS
  DC-HSDPA: Max 42Mbps (DL)/HSUPA: Max 5.76Mbps(UL)
  WCDMA: Max 387Kbps(DL)/Max 384Kbps(UL)
• TD-SCDMA: \
• CDMA200: \
• SMS: •

8. Interface

• USB:2.0/3.0, Slave 1.8V Diversity and GNSS
