Online Thermal Foam Inkjet Printer Automatic Coding Machine 16V | Technical Specs Online Thermal Foam Inkjet Printer Automatic Coding Machine 16V
The online thermal foam inkjet printer adopts mature TIJ thermal ink jet printing technology and is equipped with a 0.5 inch print head. It can be directly installed on the production assembly line to realize fully automatic online non contact printing. It is widely applied in industries of food, packaging, hardware, plastic, carton, pipe materials, etc. It can print marks such as production date, batch number, expiry date, serial number, QR code, barcode and LOGO patterns. The machine features a compact overall structure, easy installation and commissioning and solvent free operation, adopts dry fast dry ink cartridges, delivers low maintenance cost and is a cost effective marking solution for small and medium sized production lines.
Product Parameters Power Supply: 16V-1.5A power adapter Product Material: Aluminum alloy Print head Type: TIJ thermal foam print head Screen Size: 5-inch resistive touch screen Printing Height: 2-12.7mm (0.07-0.5 inch) Printing Distance: 2-5mm (0.07-0.2 inch) Printing Speed: 70m/min (229.66ft/min) Print head: 0.5in External Interfaces: Power port, USB port Serial Number Range: 1-15 digits Operating Environment: Temperature: 0-40°C; Humidity: 10-80% Precaution
1. Always power off the machine before installing or removing the ink cartridge to prevent static electricity from causing damage to the cartridge.
2. Do not leave the ink cartridge inside the print head for long term idle storage. When the machine is not used, remove the cartridge in time and cover it with the original protective cap to avoid nozzle clogging caused by residual ink.
3. The poor printing effect or insufficient ink output usually results from clogged nozzles caused by residual ink. Moisten lint free cloth or soft tissue with moderate concentration alcohol and gently wipe the cartridge nozzle. Regularly inspect the nozzle for residual ink, and conduct preventive cleaning to avoid irreversible nozzle clogging.
Product Features
- Online assembly line operation – Photoelectric sensor triggers printing automatically when products pass by. Three working modes: sensor triggered, manual test, continuous cyclic printing.
- Prints with fast drying ink – Compatible with cartons, plastics, laminated bags, metals and wood without ink bleeding.
- 5-inch color touch screen – Intuitive human machine interface, parameter adjustment and file editing with one click operation.
- Flexible mechanical adjustment bracket – Print head can be fine tuned vertically and horizontally at multiple angles to adapt to different working positions and products.
- Easy maintenance – Plug-and-play ink cartridge, no complicated pipelines or pump units. Timed micro-spray anti-clogging function reduces nozzle clogging caused by ink drying.
- Compact size and easy integration – Light weight unit can be directly installed onto existing conveyors without production line modification. Easy to disassemble and relocate.
Ink Cartridge Holder
Integrally formed with high rigidity, resists vibration during operation. Clamping slot firmly holds the TIJ thermal inkjet cartridge for quick cartridge replacement.
Combination Effect
The automatic inkjet printer can be combined with various conveyors and production lines to achieve automatic printing operation.
Note: The conveyor in the picture is just as reference and is not included in the packing list.
Operation Method
1. Take out the printer bracket and all accessories, and check for damage of parts.
2. After mounting the bracket, take out the ink cartridge and insert it into the print head slot.
3. After editing the printing content, enter the printing setting to configure the printing position and printing effects.

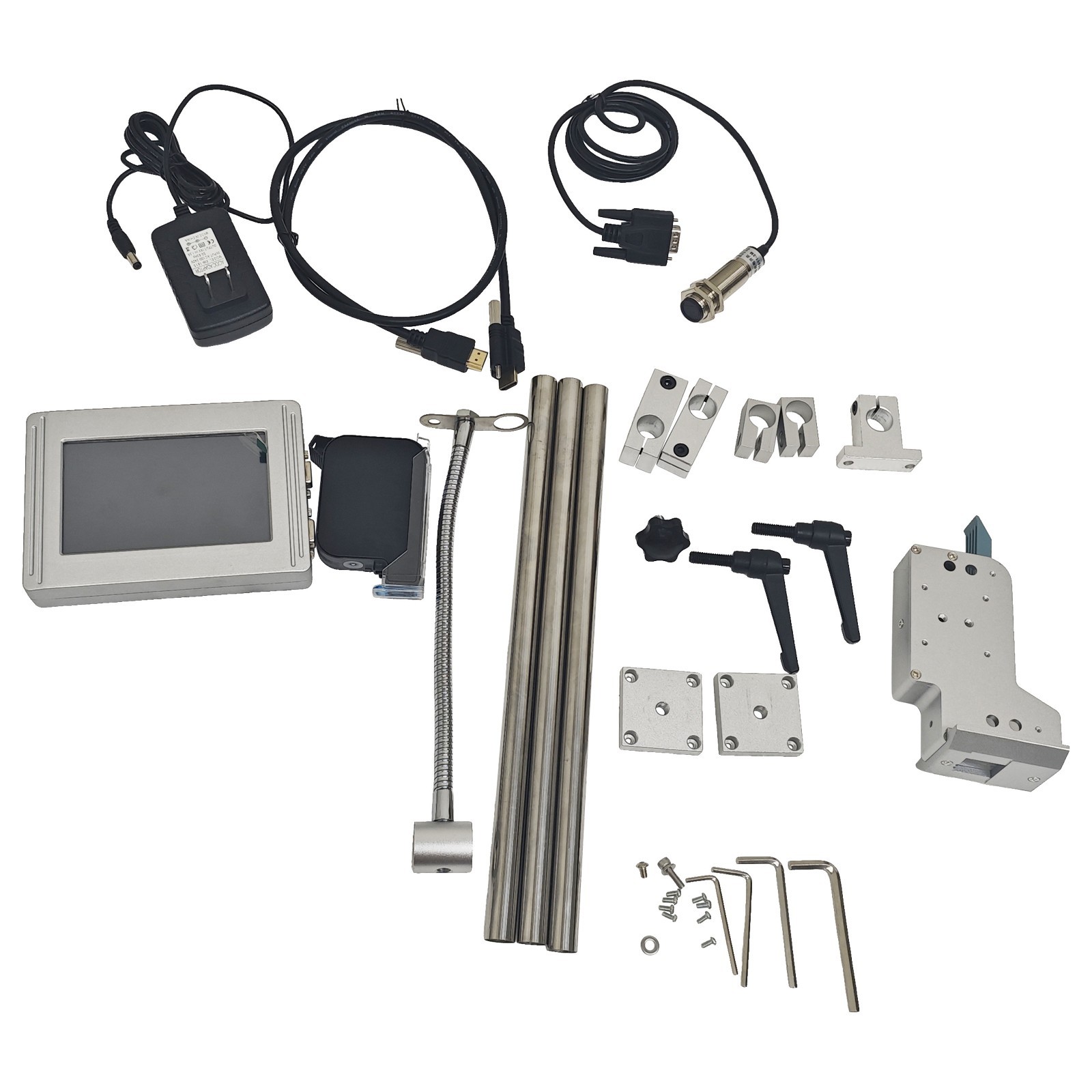

Product Display Item Included (230092) 1 x Online Thermal Foam Inkjet Printer 16V
You can make order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
