Introduction

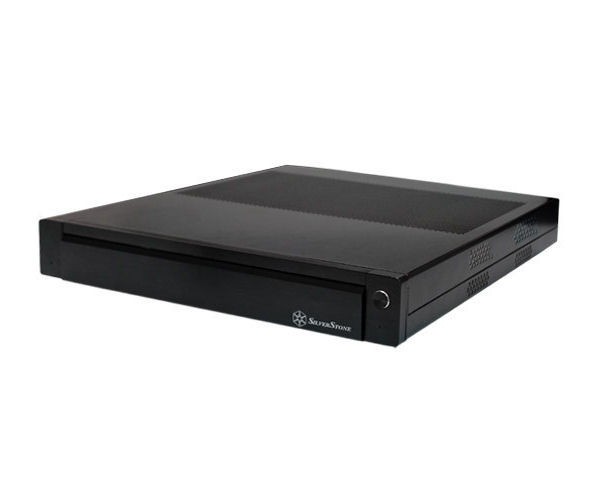

With an increasing number of mobile CPUs moving to desktop systems, SilverStone engineers once again saw a great opportunity to create a case that would truly take advantage of this movement. The result is an amazingly slim 68mm (2.68 inches) tall enclosure that is still capable of accommodating a Micro-ATX motherboard and widely available storage components. For people who prefer to build a system that is easy on the eyes (and occasionally, out of sight) with power to do almost anything, the LC19 is perfect.
Special Feature
Ultra-slim profile at 68mm tall
Sturdy steel chassis suitable for silent operation
Understated styling for any settings
Fanless PSU included
Full size 3.5 hard drive compatible
Available slim optical drive and expansion slot
Model No.
SST-LC19B-R (black + card reader)
Material
Aluminum front panel, 1.0mm SECC body (LC19R:0.8mm)
Motherboard
MoDT Micro ATX, Mini-ITX, DTX
Multimedia
--
Drive Bay
External Slim optical x 1
None
Internal 3.5" x 1 or 2.5" x 1 (vibration dampening)( LC19R only )
Cooling System
Front --
Rear 1 x 50mm exhaust fan, 2200rpm, 19dBA ( LC19R only )
Side 3 x 50mm fan slots ( LC19R only )
Top Oversized CPU/NB vents
Bottom --
Internal --
Expansion Slot
1 (includes 1 x PCI riser card and 1 x PCI-Ex16 riser card) for LC19R
Front I/O Port
USB2.0 x 2
IEEE1394 x 1
audio x 1
MIC x 1
52-in-1 card reader (LC19R only)
Power Supply
Fanless 120W DC/DC board & AC adapter
Operating system support
--
Expansion Card
--
Limitation of CPU cooler
--
Limitation of PSU
--
Net Weight
3.9 kg
Dimension
390 mm (W) x 68 mm (H) x 348 mm (D)
Extra
Slim optical drive IDE adapter
