Key Applications - Multi-Access Edge Computing (MEC)
- Centralized/Cloud Radio Access
Network (C-RAN)
- Universal Customer Premise
Equipment (uCPE)
- Software Defined WAN (SD-WAN)
- Network Function Virtualization (NFV)
- Artificial Intelligence (AI) Key Features 1. Intel® Xeon® D-2183IT Processor,
16-Core, 32 Threads, 2.2 GHz, 100W 2. Up to 512GB ECC LRDIMM,
up to 256GB reg. ECC RDIMM
DDR4-2400Mz; in 4 DIMM slots 3. 2 PCI-E 3.0 x16 (FHFL) slots 4. 2 Internal 2.5" SSD bays 5. M.2: 1 M-Key, 2280/22110;
1 E-Key, 2230; 1 B-Key, 2242/3042 6. 9 GbE (1 port for management),
4x 10G SFP+, and
1 Dedicated IPMI LAN 7. 2 USB 3.0, 1 VGA,
1 COM via RJ45 8. 800W Redundant Power Supplies
Platinum Level (94%+)Parts List - (Items Included) Part Number
Qty
Description

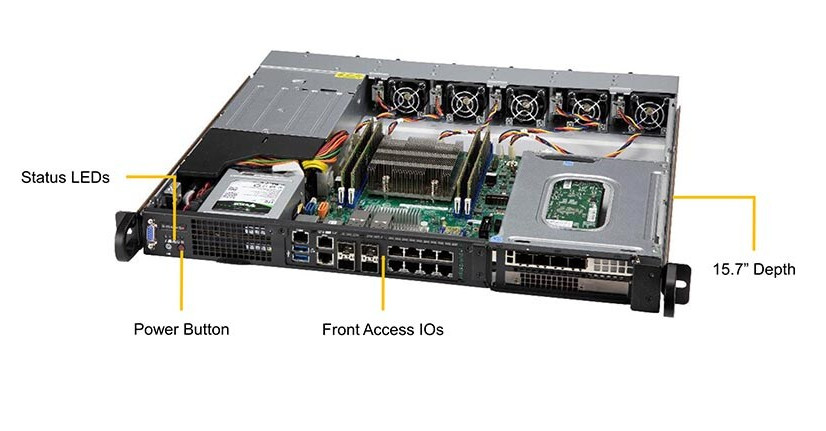

Motherboard / Chassis MBD-X11SDW-16C-TP13F+
CSE-515M-R804 1
1 Super X11SDW-16C-TP13F+ Motherboard
1U Chassis Cable 1 CBL-0473L 2 SATA,INT,ROUND,ST-ST,21CM,30AWG Cable 2 CBL-CDAT-0850 1 CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS FAN FAN-0207L4 2 40x40x56 mm, 13K-11K RPM, Counter-rotating, Hot-swappable Fan for SC515M Chassis Parts MCP-260-00153-0B 1 1U I/O Shield for X11SDW-14CN-TP13F+ with EMI Gasket, Black Air Shroud MCP-310-51504-0B 1 Mylar Air Shroud for SC515M + X11 SDW Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots * Power Supply PWS-804P-1R 2 1U 800W 100-240VAC/50-60Hz, and DC240V input * Power Distributor PDB-PT515M-2424 1 1U support redundancy up to 800W for SC515M chassis with ATX
