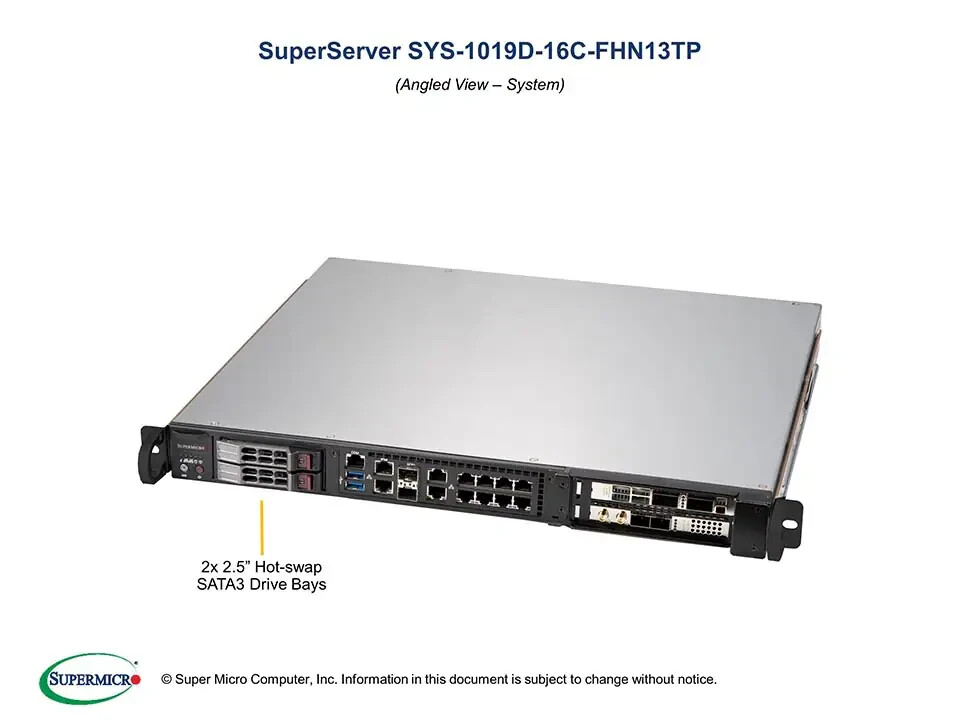

Supermicro SYS-1019D-16C-FHN13TP Server with 16-Core CPU NEW IN STOCK 5 Year Wty
SpecificationsProduct SKUsSYS-1019D-16C-FHN13TP

• SuperServer 1019D-16C-FHN13TP (Black)

Motherboard
Super X11SDW-16C-TP13FProcessorCPU

• Intel® Xeon® processor D-2183IT,
  CPU TDP support 100W

Cores / Cache

• 16 Cores, 32 Threads

System MemoryMemory Capacity

• Up to 512GB DDR4 ECC LRDIMM
• Up to 256GB DDR4 ECC RDIMM
• 4 DIMM slots

Memory Type

• 2666/2400/2133MHz ECC DDR4 L/RDIMM
• Operating speed up to 2400MHz

DIMM Sizes

• 128GB, 64GB, 32GB, 16GB

Memory Voltage

• 1.2 V

On-Board DevicesChipset

• System on Chip (SoC)

SATA

• SATA3 (6Gbps) ports via SoC controller

Network Controllers

• Dual 10G SFP+ via SoC
• Dual 10GBase-T via Intel X557
• 8x 1GbE with Intel I350-AM4
• Single 1GbE with Intel I210

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Video

• VGA via Aspeed AST2500 BMC

Input / OutputSATA

• 4 SATA3 (6Gbps) ports

LAN

• 9 RJ45 Gigabit Ethernet LAN ports
• 2 RJ45 10GbE LAN ports
• 2 10G SFP+ LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 2 USB 3.0 ports (front)

Video

• 1 VGA port

Serial Port / Header

• 1 COM via RJ45

System BIOSBIOS Type

• 128Mb SPI Flash with AMI BIOS

ManagementSoftware

• Intel® Node Manager
• IPMI 2.0
• NMI
• SUM
• Watch Dog
• SuperDoctor® 5

ChassisForm Factor

• 1U Rackmount

Model

• 1.7" (43mm)

Width

• 17.2" (437mm)

Depth

• 15" (381mm)

Package

• 6.9" (H) x 19.5" (W) x 22.4" (D)

Weight

• Gross Weight: 25 lbs (11.34 kg)
• Net Weight: 14 lbs (6.35 kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Information LED

Expansion SlotsPCI-Express

• 2 PCI-E 3.0 x16 (FHFL) slots

M.2

• 1 M.2 M-Key , 2280/22110
• 1 M.2 E-Key , 2230
• 1 M.2 B-Key , 3042

Drive BaysHot-swap

• 2 Hot-swap 2.5" drive bays

Internal

• 2 Internal 2.5" SSD bays (optional)

System CoolingFans

• 4x 40x28mm PWM fans (up to 6)

Power Supply500W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFCAC Input

• 100-240V, 50-60Hz, 6.6A max

DC Output

• +3.3V: 12A
• +5V: 15A
• +5V standby: 3A
• +12V: 41A
• -12V: 0.2A

Certification Platinum Certified
Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  0°C to 45°C (32°F to 113°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Parts ListParts List - (Items Included)
Part Number
Qty
Description
Motherboard / ChassisMBD-X11SDW-16C-TP13F
CSE-513BTS-505WB1
1Super X11SDW-16C-TP13F Motherboard
1U 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSDCable 2CBL-CDAT-06621CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWGCable 3CBL-CDAT-08501CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHSFAN 1FAN-0154L4240x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACHPartsMCP-260-00144-0B11U I/O Shield for X11SDW with EMI Gasket, BlackAir ShroudMCP-310-51303-0B1Mylar Air shroud for SC513B + UP MB X11SDWRiser CardRSC-R1UW-2E1611U LHS WIO Riser card with two PCI-E x16 slots*Power SupplyPWS-505P-1H11U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH*Cable 4CBL-0160L1NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)*Cable 5CBL-0335L1CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG*FAN 2FAN-0154L4440x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH*Drive Tray(s)MCP-220-00180-0B22.5\" New ID gen 3 hot-swap HDD tray with lock feature (with plastic bracket)*PartsMCP-260-00078-0B11U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black*Front PanelMCP-280-80901-0N1SC809 FRONT CONTROL PANEL ASSY*Rail SetMCP-290-00102-0N1 setOuter rail, quick-release type, 25.6\" to 33.05\"*Rail SetMCP-290-00108-0B1 setInner rail, front, short (quick) for 1U 17.2*Fan HolderMCP-320-00060-0N1Fan tray for six 40x28 fans in SC813M (for X11DPL-i fan 40x28mm
