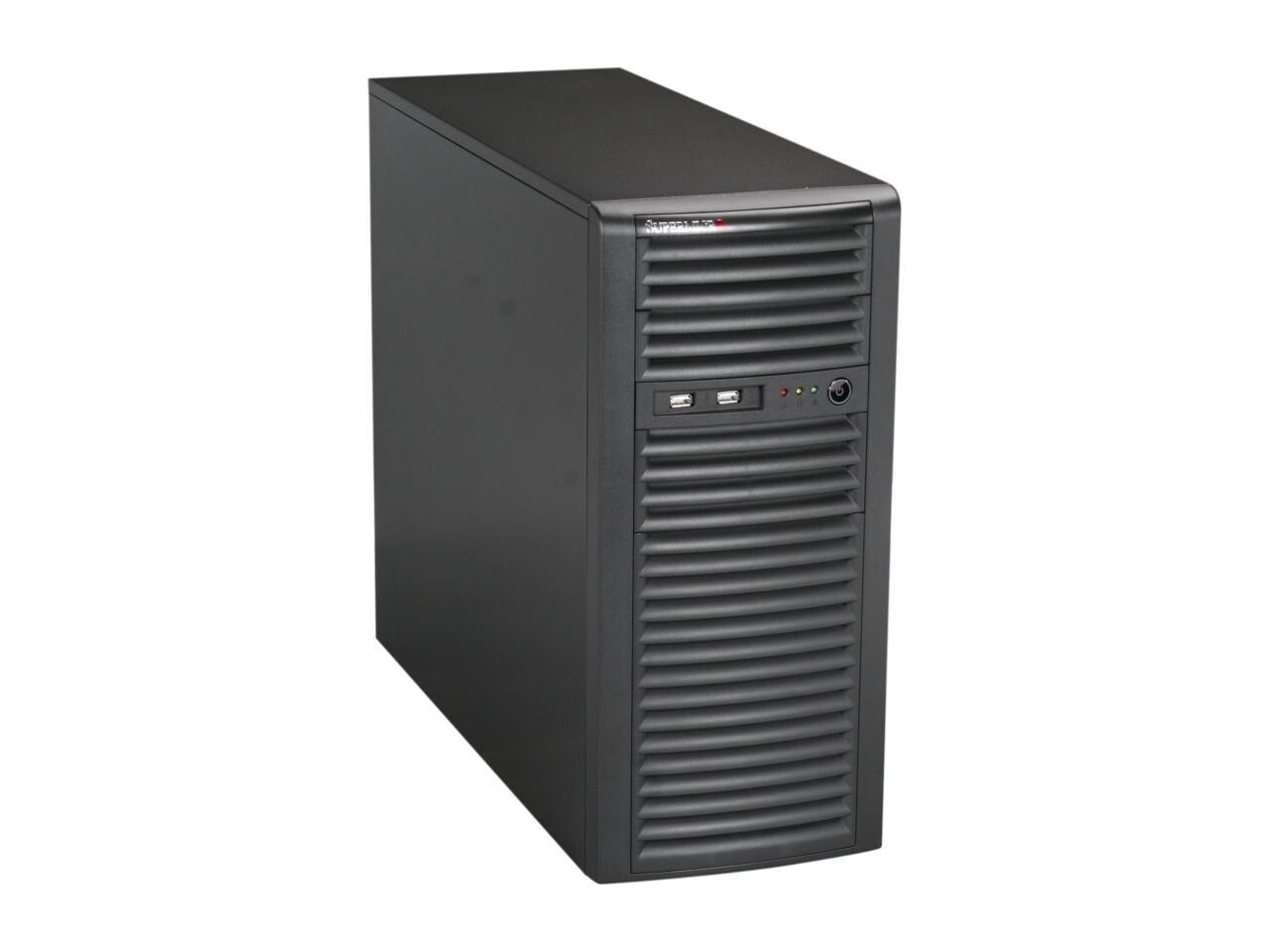

Supermicro SYS-5037C-T Barebones Tower Server NEW IN STOCK 5 Year Warranty
Product SKUsSuperServer

• SYS-5037C-T (Black)

MotherboardSuper X9SCAProcessor/CacheCPU

• Intel® Xeon® processor E3-1200 & v2 series, Intel® 2nd Gen and 3rd Gen Core i3, Intel® Pentium® and Celeron processors *
• Socket H2 (LGA 1155)

System MemoryMemory Capacity

• 4x 240-pin DDR3 DIMM slots
• Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)

Memory Type

• 1600*/1333/1066MHz ECC DDR3, 240-pin gold-plated DIMMs

DIMM Sizes

• 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C204 PCH chipset

SATA

• 4x SATA 2.0 (3Gbps) w/ RAID 0, 1, 5, 10
• 2x SATA 3.0 (6Gbps) w/ RAID 0, 1

Network Controllers

• Intel® 82574L, 2x Gigabit LAN ports
• Virtual Machine Device Queues High efficient I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT 3support for fast, scaleable, and reliable networking
• VMDqsupport for better performance of virtualization

Graphics

• Matrox G200eW 16MB DDR2

Super I/O

• Nuvoton WPCM450RA0BX

Expansion SlotsPCI-Express

• 1 PCI-E 3.0* x16 slot
• 2 PCI-E 2.0 x4 (in x8) slots

PCI

• 3 PCI 32-bit slots

Input / OutputSerial ATA

• 6 SATA 2.0 ports
• 6 SATA hard drives supported

LAN

• 2x RJ45 LAN ports

USB

• 2x USB rear ports
• 6x USB ports via header
• Total 8 USB 2.0 Compliant

VGA

• 1x VGA port

Serial Port / Header

• 2x Fast UART 16550 serial port
  (one header and one rear port)

System BIOSBIOS Type

• 32Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3

ChassisForm Factor

• 16.7" (424 mm)

Width

• 7.6" (193 mm)

Depth

• 20.68" (525.3 mm)

Weight

• Net Weight: 27.5 lbs (12.47 kg)
• Gross Weight: 32.5 lbs (14.74 kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button

LEDs

• Power LED
• Hard drive activity LED
• Network activity LED
• System Overheat LED

Ports

• 2x Front side USB 2.0 ports

Drive BaysInternal

• 4x 3.5" tool-less HDD trays
  (90° rotatable drive cage)
• Enterprise SATA HDD only recommended

Peripheral Bays

• 2x 5.25" peripheral drive bays
• 1x 3.5" external drive bay (OEM option)

System CoolingFans

• 1x 12cm rear exhaust fan with optimal fan speed control
• Optimized Cooling Technology at
  21dB Whisper-Quiet Operation

Power Supply500W AC power supply w/ PFCAC Voltage

• 100 - 240V, 50-60Hz, 7-3.5 Amp

+5V

• 20 Amp

+5V standby

• 3 Amp

+12V1

• 17 Amp

+12V2

• 17 Amp

+12V3

• 17 Amp

+12V4

• 18 Amp

-12V

• 0.5 Amp

+3.3V

• 15 Amp

Certification
Bronze Certified
[Test Report]PC Health MonitoringCPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V

FAN

• Total of 5 fan headers supporting up to 5 fans

Temperature

• Monitoring for CPU and chassis environment
• Thermal Control for 5x fan connectors
• PECI

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Parts List - (Items Included)Part NumberQtyDescriptionMotherboard / X9SCA Motherboard
Mid-Tower ChassisCable 1CBL-0044L457.5CM SATA FLAT S-S PBFCDCDR-X9-UP0Driver CD for X9-UP series motherboard
