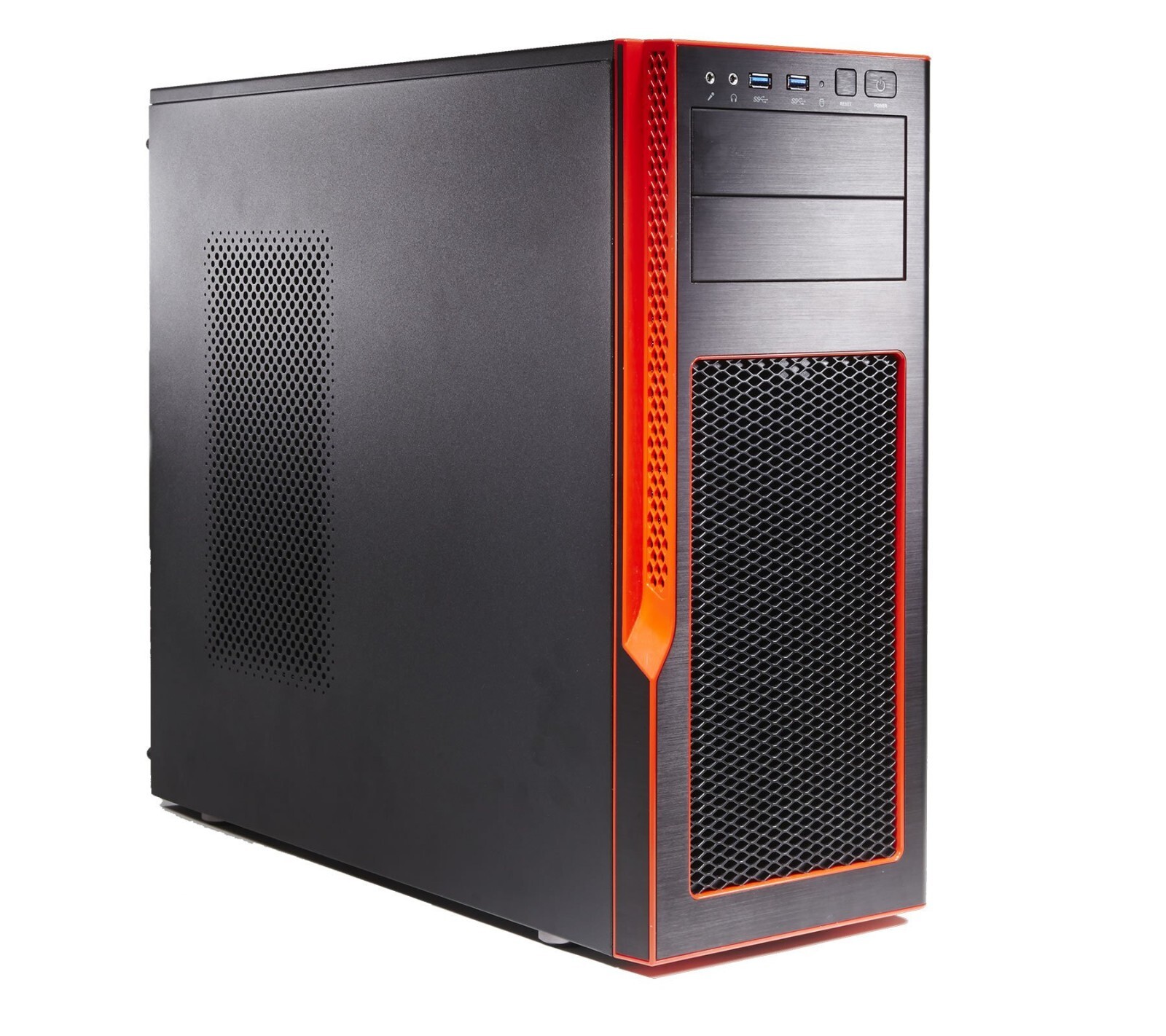

Supermicro SYS-5039AD-T Barebones Tower Server NEW IN STOCK 5 Year Warranty
SpecificationsProduct SKUsSuperServer
Motherboard
Super C7Z170-SQProcessor/CacheCPU
- Intel® 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 115W TDP
- Single Socket H4 (LGA 1151)
NoteBIOS version 2.0 or above is required to support 7th Generation Intel® Core™ ProcessorsSystem MemoryMemory Capacity
- 4x 288-pin DDR4 DIMM slots
- Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots
Memory Type
- Frequency up to 3200MHz (OC) non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
- Support overclocking up to 3200MHz*
* Please check the operation manual for supported components
DIMM Sizes
Memory Voltage
On-Board DevicesChipset
- Intel® Z170 Express Chipset
SATA
- SATA3 via PCH w/ RAID 0, 1, 5, 10
Network Controllers
- Intel® i219V Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
Input / OutputSATA
LAN
- 1x RJ45 Gigabit Ethernet LAN port
USB
- 6x USB 3.0 ports (2 rear, 4 via headers)
- 6x USB 2.0 ports (2 rear, 4 via headers)
- 1x USB 3.1 (10Gbps) Type C port (rear)
- 1x Thunderbolt AIC header
Audio
Display
- 1x DVI - D, 1x DP (Display Port), 1x HDMI
Serial Port / Header
Expansion SlotsPCI-Express
- 2 PCI-E 3.0 x16 (1 x16 or dual x8) slots
- 1 PCI-E 3.0 x16 (x4) slot
- 1 PCI-E 3.0 x4 slot
- 2 PCI-E 3.0 x1 (in x4) slots
- 1 PCIe M.2 (PCIe x4 2260/2280/22110)
System BIOSBIOS Type
- 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
- DMI (SMBIOS) 2.7
- ACPI 5.0
- USB Keyboard support
ChassisForm Factor
Width
Depth
Package
- 24.9" (H) x 14.2" (W) x 24.0" (D)
Weight
- Net Weight: 22.27 lbs (10.1 kg)
- Gross Weight: 28.22 lbs (12.8 kg)
Available Colors
Front PanelButtons
- Power On/Off Button
- Reset Button
LEDs
- Power LED
- Hard drive activity LED
Ports
- 2x USB 3.0 ports
- 1x Earphone, 1x Microphone port
Drive BaysInternal HDD/SSD
- 4x 2.5" drive bays, and 6x combination bays that can house either 3.5" or 2.5" drives
Peripheral
- 2x 5.25" Peripheral Drive Bays
System CoolingFans
Power Supply750W Multi-output Power Supply for Desktop, semi-modular cable outputAC Input
+5V
+12V
- Max: 62A & Min: 0.1A (100Vac-240Vac)
+3.3V
+5V SB
-12V
CertificationGold CertifiedPC Health MonitoringVoltage
- Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
- 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
- Total of five 4-pin fan headers supporting up to 5 fans
- 5x fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Support 3-pin fans (w/o speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- FC temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
Operating Environment / ComplianceRoHS
Environmental Spec.
- Operating Temperature:
10°C to 35°C (50°F to 95°F) - Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% (non-condensing)
Parts ListParts List - (Items Included)
Part Number
Qty
Description
Motherboard / ChassisMBD-C7Z170-SQ
CSE-GS5A-753R1
1Super C7Z170-SQ Motherboard
3U Mid-Tower ChassisManualMNL-1822-QRG1SYS-5039AD-T (C7Z170-SQ, CSE-GS5A-753R), QRGPower SupplyPWS-753-PQ1[DESKTOP ONLY], PS2/ATX 750W Multi-output Power supply with modular cable 80Plus Gold, RoHS/REACH
