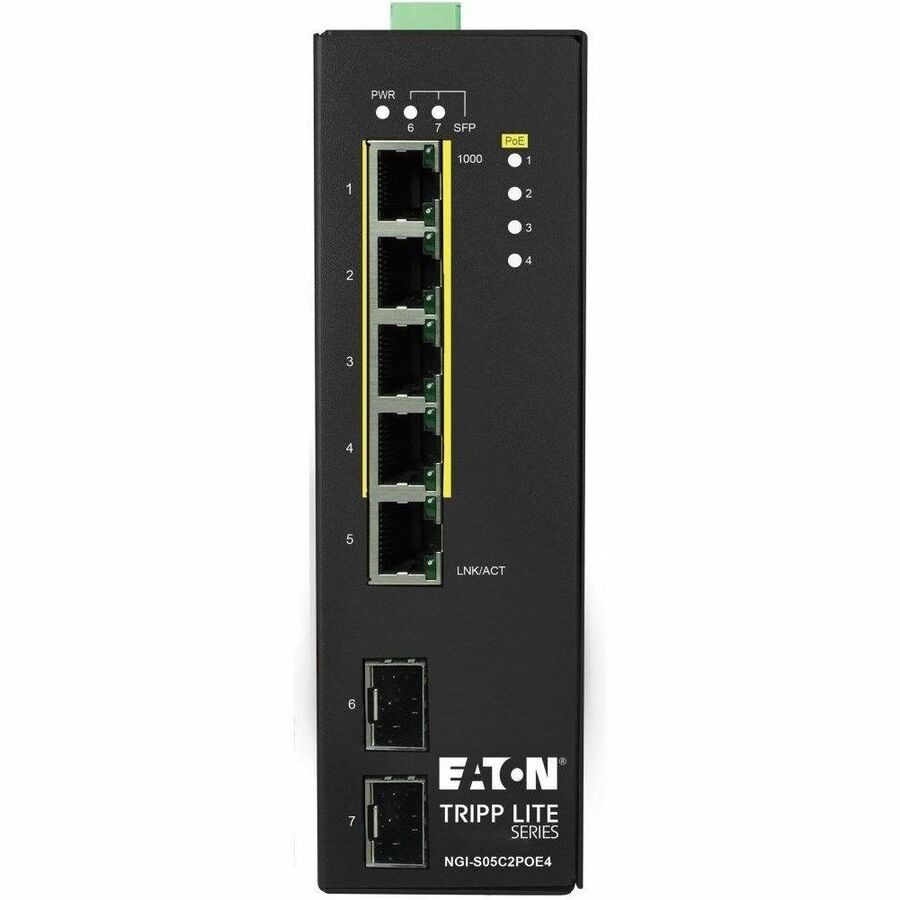

Tripp Lite 5-Port Lite Managed 10/100/1000 Mbps PoE+ Gigabit Ethernet Switch Brand: Tripp Lite UPC: 0037332267009 Mfr Part #: NGIS05C2POE4
General Information
5-Port Smart Gigabit Ethernet Switch Connects Your Network Devices to a LAN
This Lite Managed switch transmits both power and data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-S05C2POE4 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.
PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
This smart switch features four PoE ports capable of powering compatible PoE appliances and devices, such as VoIP phones and IP surveillance cameras, without the expense and effort of running separate power lines or installing the devices near an AC outlet. The NGI-S05C2POE4 provides PoE+ compatibility up to 30W per port and a PoE budget of 120W with 24VDC input or 240W with 48VDC input to satisfy your demand for high-power network devices.
Protective Metal Housing Built to Last in Harsh Environments
The hardened NGI-S05C2POE4 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, security, government, military, oil and gas, mining and outdoor applications that demand high bandwidth convergence, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -10 to 60 degrees Celsius (-14 to 140 degrees Fahrenheit).
Manages and Monitors Devices via Innovative Lamungan Management Platform
The Lite Managed switch's user-friendly cloud-based Lamungan platform helps you manage your network via web interface or mobile app. Three different features help you monitor connected devices, real-time traffic and link information. The Wizard is a set-up assistant that guides you step-by-step through initial management. The Topology Map with visual connectivity diagram displays network infrastructure and highlights link status. The Dashboard provides important performance and traffic-related information. A tri-color scheme - red (critical), yellow (alert), green (normal) - keeps you up to date on any network irregularities.
Intelligent Connection Technology Ensures Plug-and-Play Operability
The NGI-S05C2POE4 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files.
Media & PerformanceMedia Type Supported:Twisted PairEthernet Technology:Gigabit EthernetNetwork Technology:10/100/1000Base-TNetwork Technology:100Base-FXNetwork Technology:1000Base-XNetwork Technology:1000Base-SX/LX
I/O ExpansionsTotal Number of Expansion Slots:2Expansion Slot Type:SFP (mini-GBIC)Shared SFP Slot:NoNumber of SFP Slots:2
Network & CommunicationLayer Supported:2Networking Standards:IEEE 802.3Networking Standards:IEEE 802.3uNetworking Standards:IEEE 802.3abNetworking Standards:IEEE 802.3xNetworking Standards:IEEE 802.1pNetworking Standards:IEEE 802.3azNetworking Standards:IEEE 802.3afNetworking Standards:IEEE 802.3atNetworking Standards:IEEE 802.3z
Management & ProtocolsManageable:Yes
Power DescriptionPoE (RJ-45) Port:YesPoE Budget:120 WPower Consumption:14 WPlug/Connector Type:Terminal Block
Physical CharacteristicsProduct Material:MetalForm Factor:DIN Rail (Approximate):1.90 lb
NGI-S05C2POE4 Ethernet Switch DIN Rail-mounting Clip (Pre-installed) Country of Origin:TaiwanTAA Compliant:YesEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)Environmental Compliance:Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
