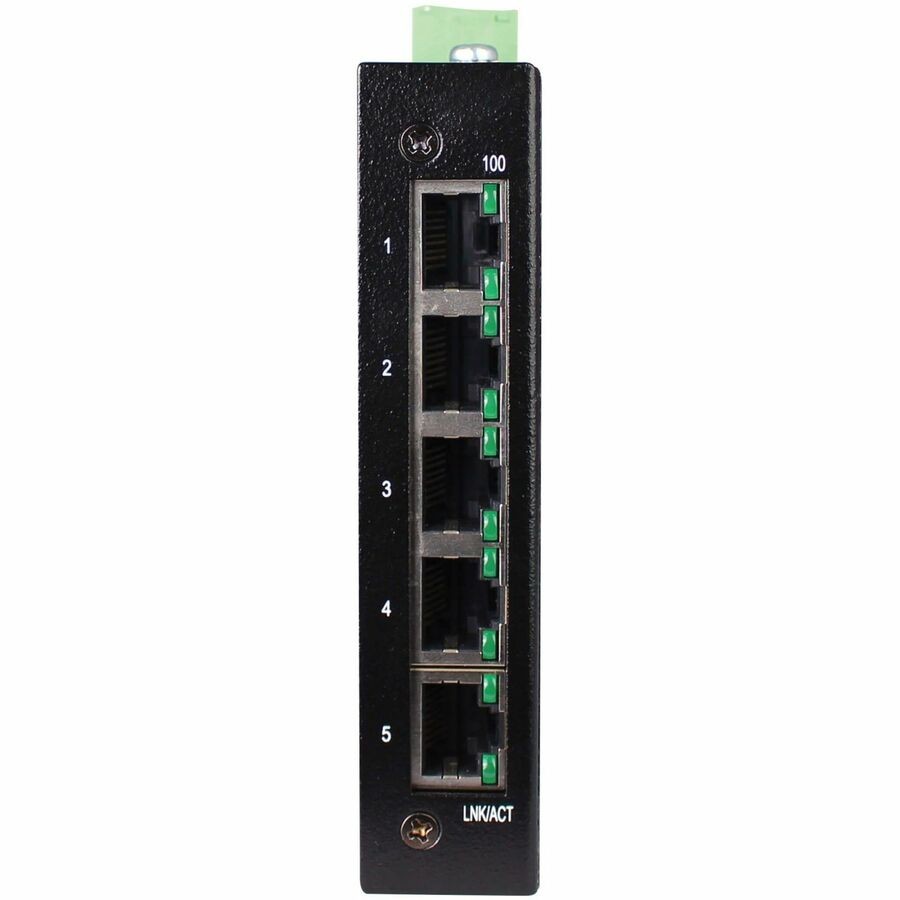

Tripp Lite 5-Port Unmanaged Industrial Ethernet Switch NFIU05A Brand: Tripp Lite UPC: 0037332282033 Mfr Part #: NFIU05A

General Information

Features | 5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN

This space-saving switch with EIP QoS transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

Ethernet/IP Quality of Service (EIP QoS)

The EIP QoS control mechanism is widely used for Ethernet/IP data streams. Based on the application requirements, this feature helps provide different priorities for different users or data streams. This helps ensure that the performance of data streams deliver at a certain level. Note : While NFI-U05A does support QoS, the feature is handled automatically by our product. If you want to control network traffic flow or prioritize specific ports to your personal preference, you must use a router in your network with a QoS tool to achieve this level of control.

Ruggedized Metal Housing Built to Last in Harsh Environments

The compact NFI-U05A adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).

Unmanaged Switch Requires Little to No Configuration

Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05A supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

Works with the Most Popular Web Browsers

The NFI-U05A is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NFI-U05A accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

Flexible Mounting Options

The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12-48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.

TAA-Compliant for GSA Schedule Purchases

The NFI-U05A is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Media & PerformanceMedia Type Supported:Twisted PairEthernet Technology:Fast EthernetNetwork Technology:10/100Base-T

Network & CommunicationLayer Supported:2Networking Standards:IEEE 802.1pNetworking Standards:IEEE 802.3Networking Standards:IEEE 802.3uNetworking Standards:IEEE 802.3x

Management & ProtocolsManageable:No

Power DescriptionInput Voltage:12 V DCInput Voltage:48 V DCPower Source:DCPower Consumption:3 WPlug/Connector Type:Terminal Block (3 Wire)

Physical CharacteristicsColor Family:BlackProduct Color:BlackProduct Material:AluminumProduct Material:MetalForm Factor:DIN Rail MountableForm Factor:Wall MountableForm (Approximate):6.72 oz

5-Port Unmanaged Industrial Ethernet Switch - 10/100 Mbps, Ruggedized, -40° to 75°C, EIP QoS, DIN/Wall Mount, TAA

DIN Rail-Mounting Clip (Pre-Installed)

Wall-Mounting Bracket (Pre-Installed)

Owner's of Origin:TaiwanTAA Compliant:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)Environmental Compliance:Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
