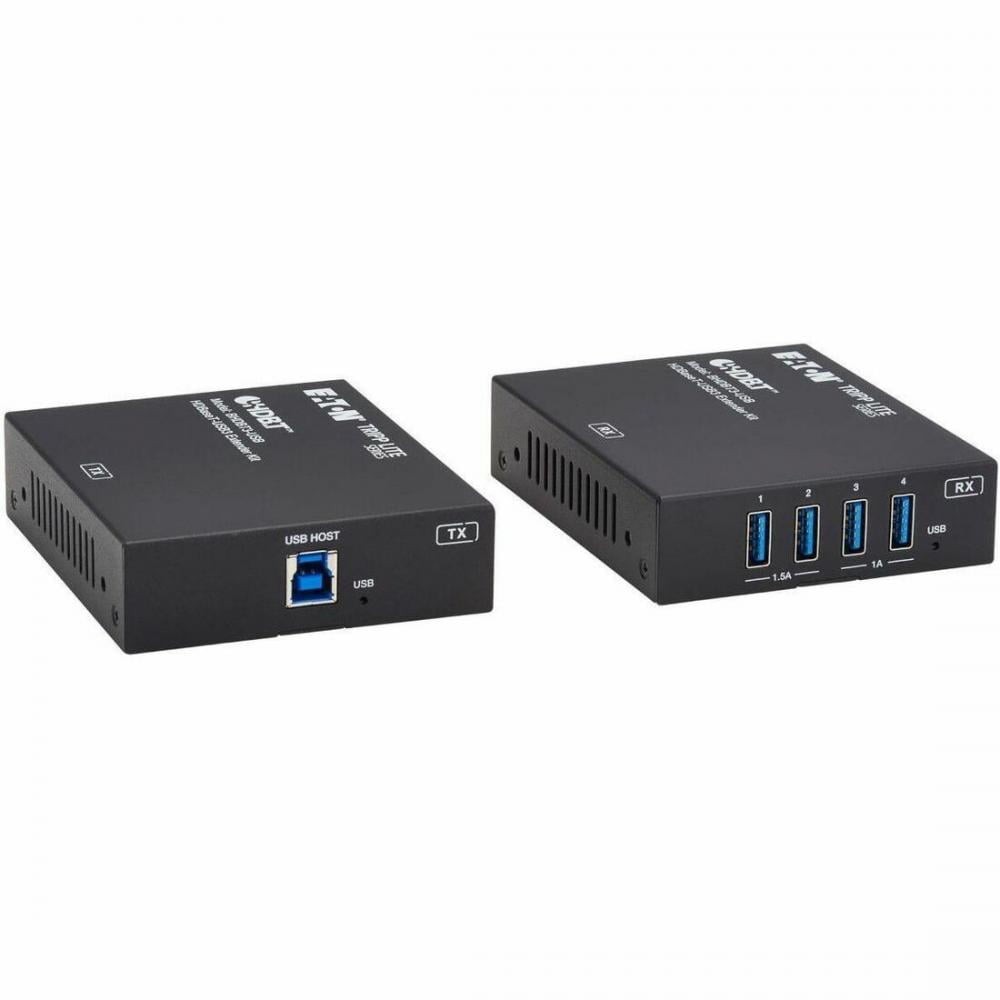

Eaton Tripp Lite Series HDBaseT-USB3 over Cat6a Extender Kit, 4 USB-A 3.2 Gen 1 Ports, PoC, RS-232, Up to 328 ft. [100 m], TAA (bhdbt3-usb) Eaton Tripp Lite Series HDBaseT-USB3 over Cat6a Extender Kit, 4 USB-A 3.2 Gen 1 Ports, PoC, RS-232, Up to 328 ft. [100 m], TAA (bhdbt3-usb)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: USB 3.2 Gen 1 transmitter USB 3.2 Gen 1 receiver Locking power supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 24V 2A 48W) with 5 ft. (1.5 m) cord 4x International power adapters (North America, Australia, Europe, United Kingdom) 2x 3.5 mm Phoenix connectors Mounting hardware Owner's manual
TAA Compliant: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 3
Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
HDBaseT Extender Kit Allows Installation of USB Devices Up to 100 m (328 ft.) from the Source
This USB transmitter and receiver use HDBaseT technology to extend and expand the potential of your USB devices. Using a single Cat6a cable, the BHDBT3-USB extends four USB peripherals up to 328 feet (100 meters), giving you more flexibility in placing webcams, interactive whiteboards, security and surveillance equipment and external data storage devices, among others.
Designed with the Newest HDBaseT 3.0 Technology
The BHDBT3-USB extension kit uses the latest Valens chipset to provide a modern solution to USB extension. It supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with previous USB generations. It also supports both RS-232 and FSYNC GPIO pass-through, making the BHDBT3-USB ideal for conference halls, auditoriums, lecture halls, museums, exhibition rooms and anywhere else that requires high-quality transmission across long distances.
Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Bi-directional 24V Power over Cable (PoC) support powers the entire installation over Cat6a cable. Connect the included power supply at either the transmitter or the receiver end. LEDs on both the transmitter and transceiver light up to indicate the system is receiving power and a USB signal is being transmitted. PoC helps you avoid the hassle of a bulky power brick and gives you the freedom to place one end where needed without worrying about finding a nearby AC outlet.
Plug-and-Play Convenience and Easy Installation
The BHDBT3-USB requires no software or drivers to install, making setup simple. The transmitter and receiver mount to a wall using the included brackets.
TAA-Compliant for GSA Schedule Purchases
The BHDBT3-USB is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Package Contents:
- USB 3.2 Gen 1 transmitter
- USB 3.2 Gen 1 receiver
- Locking power supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 24V 2A 48W) with 5 ft. (1.5 m) cord
- 4x International power adapters (North America, Australia, Europe, United Kingdom)
- 2x 3.5 mm Phoenix connectors
- Mounting hardware
- Owner's manual
SpecificationPower DescriptionInput Voltage240 V ACPhysical CharacteristicsProduct MaterialMetalTransmitter Weight (Approximate)9.12 ozProduct ColorBlackReceiver Weight (Approximate)8.80 ozColor FamilyBlackWarrantyLimited Warranty1 YearInterfaces/PortsNumber of USB Ports7Network (RJ-45)YesUSBYesNumber of Network (RJ-45) Ports2General InformationBrand NameTripp Lite seriesMarketing Information HDBaseT Extender Kit Allows Installation of USB Devices Up to 100 m (328 ft.) from the Source This USB transmitter and receiver use HDBaseT technology to extend and expand the potential of your USB devices. Using a single Cat6a cable, the BHDBT3-USB extends four USB peripherals up to 328 feet (100 meters), giving you more flexibility in placing webcams, interactive whiteboards, security and surveillance equipment and external data storage devices, among others. Designed with the Newest HDBaseT 3.0 Technology The BHDBT3-USB extension kit uses the latest Valens chipset to provide a modern solution to USB extension. It supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with previous USB generations. It also supports both RS-232 and FSYNC GPIO pass-through, making the BHDBT3-USB ideal for conference halls, auditoriums, lecture halls, museums, exhibition rooms and anywhere else that requires high-quality transmission across long distances. Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks Bi-directional 24V Power over Cable (PoC) support powers the entire installation over Cat6a cable. Connect the included power supply at either the transmitter or the receiver end. LEDs on both the transmitter and transceiver light up to indicate the system is receiving power and a USB signal is being transmitted. PoC helps you avoid the hassle of a bulky power brick and gives you the freedom to place one end where needed without worrying about finding a nearby AC outlet. Plug-and-Play Convenience and Easy Installation The BHDBT3-USB requires no software or drivers to install, making setup simple. The transmitter and receiver mount to a wall using the included brackets. TAA-Compliant for GSA Schedule Purchases The BHDBT3-USB is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Product TypeUSB ExtenderProduct NameBHDBT3-USB USB ExtenderManufacturerEaton CorporationManufacturer Part NumberBHDBT3-USBProduct ModelBHDBT3-USBTitleProduct TitleEaton Tripp Lite Series HDBaseT-USB3 over Cat6a Extender Kit, 4 USB-A 3.2 Gen 1 Ports, PoC, RS-232, Up to 328 ft. [100 m], TAA (BHDBT3USB)Technical InformationMaximum Data Transfer Rate640 MB/sMaximum Operating Distance328.08 ftMaximum Extended Range328.08 ft Shipping
