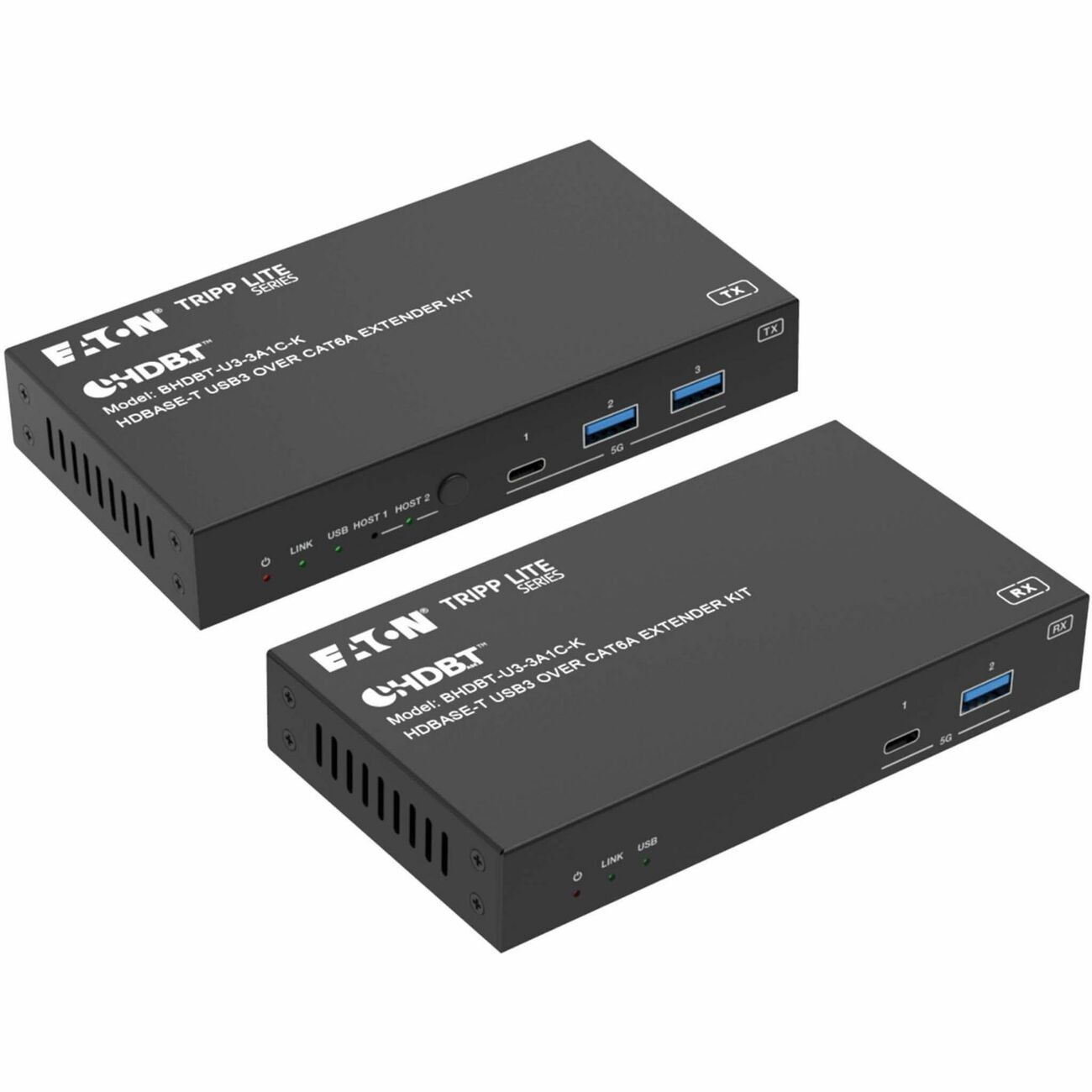

Tripp Lite BHDBTU33A1CK HDBaseT USB 3.0 Cat6A Extender Kit - 100m Tripp Lite BHDBTU33A1CK HDBaseT USB 3.0 Cat6A Extender Kit - 100m
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: USB 3.2 Gen 1 transmitter USB 3.2 Gen 1 receiver External power supply (Input: 100-240V, 50/60 Hz, 2A; Output: 24V 3.75A 90W) with 4 ft. (1.2 m) cord 4 x International power adapters (North America, Australia, Europe, United Kingdom) 2 x 3.5 mm Phoenix connectors Mounting hardware Owner's manual
Certifications & Standards: CE (Europe) FCC Part 15 Class B (USA) CAN/CSA-C22.2 No. 62368-1 (Canada) EN 55032; EN 55035 ICES (Canada) IEC 62368-1 UL 62368-1
TAA Compliant: Yes
Compatibility: System Requirements USB 3.2 Gen 1 source device (all connected devices and cabling must support USB 3.2 Gen 1 standards to achieve USB 3.2 Gen 1 speeds) Cat6a F/FTP cabling up to 328 ft. (100 m) USB peripherals, such as webcams, interactive whiteboards, security and monitoring devices, remote data storage AC power outlet on a wall, PDU or UPS system
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS) 3
Waste Electrical and Electronic Equipment Directive (WEEE)
Product Description
This item is brand-new, factory sealed.
HDBaseT Extender Kit Allows Installation of USB Devices Up to 328 ft. from the Source
This USB transmitter and receiver use HDBaseT technology to extend and expand the potential of your USB devices. Using a single Cat6a cable, the BHDBT-U3-3A1C-K extends up to seven USB peripherals up to 328 feet (100 meters), giving you more flexibility in placing webcams, PTZ cameras, keyboards, mice, microphones, flash drives, 3D printers, scanners, whiteboards and touchscreen displays.
Designed with the Newest HDBaseT 3.0 Technology
The BHDBT-U3-3A1C-K extension kit uses the latest Valens chipset to provide a modern solution to USB extension. Its USB-C and USB-A ports support USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with previous USB generations. The extension kit also supports both RS-232 and FSYNC GPIO pass-through, making the BHDBT-U3-3A1C-K ideal for conference halls, auditoriums, lecture halls, museums, exhibition rooms and anywhere else that requires high-quality transmission across long distances.
Dual USB Host Ports Allow Switching Between Host Devices
The transmitter features USB-C and USB-B host ports for connecting laptops, PCs, media servers or other host devices. With the touch of a button, you can instantly switch between the two hosts and share the connected USB devices between them. LEDs indicate which host is currently being used.
Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Bi-directional 24V Power over Cable (PoC) support powers the entire installation over Cat6a cable. Connect the included power supply at either the transmitter or the receiver end. LEDs on both the transmitter and receiver light up to indicate the system is receiving power and a USB signal is being transmitted. PoC helps you avoid the hassle of a bulky power brick and gives you the freedom to place one end where needed without worrying about finding a nearby AC outlet.
Supports API Command Control and FSYNC GPIO
Connect the RS-232 or Service port to a PC, then open a Serial Command tool on the PC to control the BHDBT-U3-3A1C-K using ASCII commands. FSYNC GPIO pass-through is supported for controlling industrial cameras and other audio/video equipment.
Plug-and-Play Convenience and Easy Installation
The BHDBT-U3-3A1C-K requires no software or drivers to install, making setup simple. The transmitter and receiver mount to a wall using the included brackets.
TAA-Compliant for GSA Schedule Purchases
The BHDBT-U3-3A1C-K is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Package Contents:
- USB 3.2 Gen 1 transmitter
- USB 3.2 Gen 1 receiver
- External power supply (Input: 100-240V, 50/60 Hz, 2A; Output: 24V 3.75A 90W) with 4 ft. (1.2 m) cord
- 4 x International power adapters (North America, Australia, Europe, United Kingdom)
- 2 x 3.5 mm Phoenix connectors
- Mounting hardware
- Owner's manual
SpecificationPower DescriptionInput Voltage230 V ACPhysical CharacteristicsProduct MaterialMetalTransmitter Weight (Approximate)9.17 ozProduct ColorBlackReceiver Weight (Approximate)8.92 ozHeight0.9"Color Warranty1 YearInterfaces/PortsNumber of USB Ports11Network (RJ-45)YesUSBYesNumber of Network (RJ-45) Ports2General InformationBrand NameTripp Lite seriesMarketing Information HDBaseT Extender Kit Allows Installation of USB Devices Up to 328 ft. from the Source This USB transmitter and receiver use HDBaseT technology to extend and expand the potential of your USB devices. Using a single Cat6a cable, the BHDBT-U3-3A1C-K extends up to seven USB peripherals up to 328 feet (100 meters), giving you more flexibility in placing webcams, PTZ cameras, keyboards, mice, microphones, flash drives, 3D printers, scanners, whiteboards and touchscreen displays. Designed with the Newest HDBaseT 3.0 Technology The BHDBT-U3-3A1C-K extension kit uses the latest Valens chipset to provide a modern solution to USB extension. Its USB-C and USB-A ports support USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with previous USB generations. The extension kit also supports both RS-232 and FSYNC GPIO pass-through, making the BHDBT-U3-3A1C-K ideal for conference halls, auditoriums, lecture halls, museums, exhibition rooms and anywhere else that requires high-quality transmission across long distances. Dual USB Host Ports Allow Switching Between Host Devices The transmitter features USB-C and USB-B host ports for connecting laptops, PCs, media servers or other host devices. With the touch of a button, you can instantly switch between the two hosts and share the connected USB devices between them. LEDs indicate which host is currently being used. Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks Bi-directional 24V Power over Cable (PoC) support powers the entire installation over Cat6a cable. Connect the included power supply at either the transmitter or the receiver end. LEDs on both the transmitter and receiver light up to indicate the system is receiving power and a USB signal is being transmitted. PoC helps you avoid the hassle of a bulky power brick and gives you the freedom to place one end where needed without worrying about finding a nearby AC outlet. Supports API Command Control and FSYNC GPIO Connect the RS-232 or Service port to a PC, then open a Serial Command tool on the PC to control the BHDBT-U3-3A1C-K using ASCII commands. FSYNC GPIO pass-through is supported for controlling industrial cameras and other audio/video equipment. Plug-and-Play Convenience and Easy Installation The BHDBT-U3-3A1C-K requires no software or drivers to install, making setup simple. The transmitter and receiver mount to a wall using the included brackets. TAA-Compliant for GSA Schedule Purchases The BHDBT-U3-3A1C-K is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Product TypeUSB ExtenderProduct NameBHDBT-U3-3A1C-K USB ExtenderManufacturerEaton CorporationManufacturer Part NumberBHDBT-U3-3A1C-KProduct ModelBHDBT-U3-3A1C-KTitleProduct TitleTripp Lite series BHDBT-U3-3A1C-K USB Extender (BHDBTU33A1CK)Technical InformationMaximum Data Transfer Rate640 MB/sMaximum Extended Range328.08 ft Shipping
