Waveshare 3.5inch Resistive Touch Display for Raspberry Pi, IPS Panel, 320×480 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

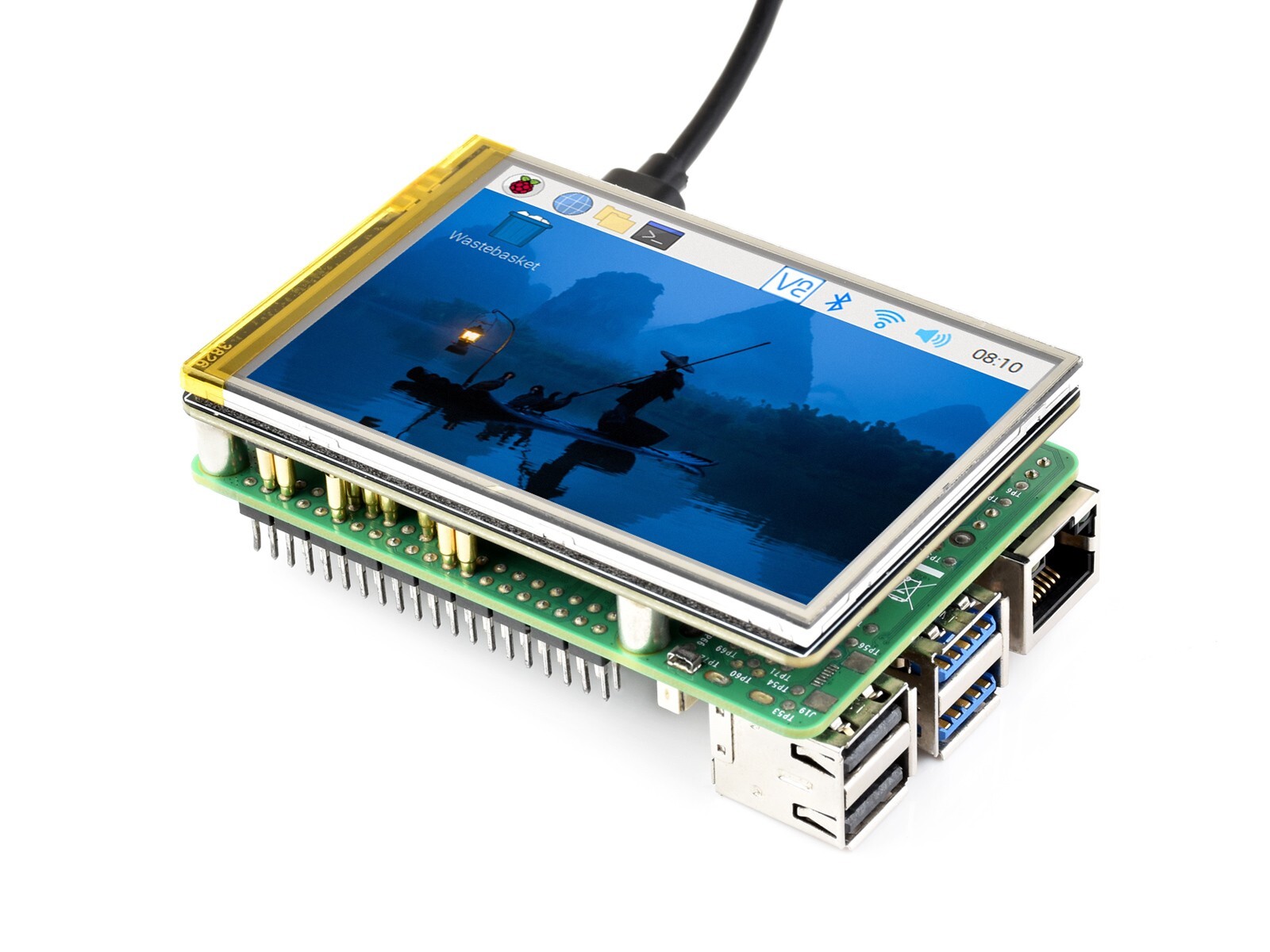

Waveshare 3.5inch Resistive Touch Display for Raspberry Pi, IPS Panel, 320×480

Price: CN $46.15

Description3.5inch Resistive Touch Display (G) for Raspberry Pi, IPS Panel, 320×480 Resolution, Immersion Gold Process, 262K Color3.5inchResistive Touch Displayfor Raspberry Pi

Embedded ST7796S driver and XPT2046 Resistive touch control chip

Comes with examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino

Size3.5"
Resolution320×480
Display Color262K
Display PanelIPS
Display DriverST7796S
Display InterfaceSPI
Touch DriverXPT2046
Touch InterfaceSPI
Touch TypeResistive
Viewing Angle170°
Certification 1CE
Certification 2ROHS
PCB ProcessImmersion Gold

The display orientation is portrait by default, 320×480 resolution (H×V). Change the software config for landscape display.Features at a glance

262K color display with 320 × 480 resolution for excellent visual effects
High touch screen transmittance, fast response, sensitive touch, and long lifetime
Embedded with ST7796S driver chip and XPT2046 resistive touch control chip, using SPI communication, minimizes required IO pins
Supports Pigo pin communication and GH1.25 11PIN cable connection
Adopts Immersion Gold process, nice looking, with better durability
Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)

SpecificationsOperating Voltage5VLogic level3.3VDisplay DriverST7796STouch DriverXPT2046Display Interface4-wire SPITouch InterfaceSPIDisplay PanelIPSDisplay size3.5inchTouch TypeResistiveTouch Pointssingle-point touchDisplay Size49.66 × 74.29mmTouch panel Size54.26 × 83.62mm
3.5inch Resistive Touch Display

Embedded with ST7796S Driver Chip And XPT2046 Resistive Touch Control Chip

smooth and stable display

Highly compatible with Raspberry Pi desktop OS, supports smooth and stable operation

IPS Display Panel

Excellent Display Performance, 262K color, wide viewing angle

High Refresh Rate

supports 60Hz high Refresh Rate for a smoother operating experience

Suitable For Multiple Programming Platforms

Comes With Demos And Manuals For Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino
More Convenient For Development And Integration, with High Expansibility

Raspberry Pi
Raspberry Pi Pico
ESP32
Arduino

SPI and I2C Control Interfaces

Options For GH1.25 11PIN Connector Or Pigo Pin For Connecting The LCD To The Host Board

PinDescription11PIN
Pin No.TP_IRQTouch panel Interrupt pin1TP_CSTouch panel Chip Selection2LCD_BLLCD Backlight pin3LCD_RSTLCD Reset pin, low active4LCD_DCLCD Data/Command selection (high for data, low for command)5LCD_CSLCD Chip Selection, low active6SCLKSPI CLK pin7MOSISPI MOSI pin8MISOSPI MISO pin9GNDGround10VCC5V Power input11
Hardware Connection

Connecting with Raspberry Pi 5

Connecting with Raspberry Pi 4B

Connecting with Raspberry Pi Zero 2 W

Connecting with ESP32-S3 development board

* for reference only, the Raspberry Pi boards andESP32-S3 development boardare NOT included, please check the Package Content for the detailed part list.

Outline dimensions
Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Resources & ServicesPackage Content

Weight:0.06 kg
