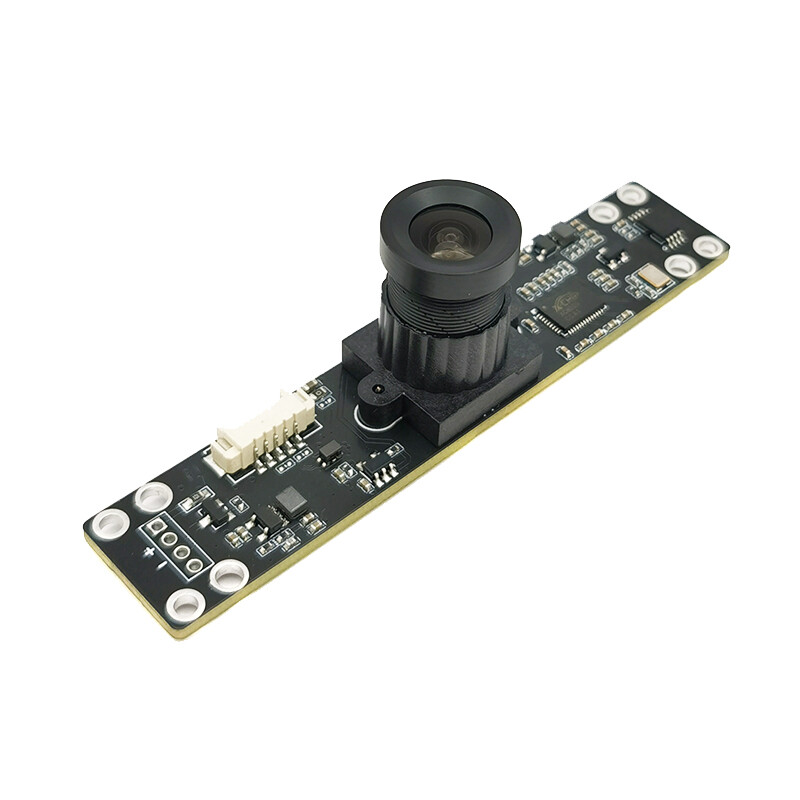

2MP 1080P USB2.0Camera Modulethis 2MP USB camera module adopts the 1/3.02-inch GC2083CMOS image sensor with maximum resolution of 1920H×1080Vat 30fps frame rate. Mini size, 90° FOV, high speed USB2.0 interface, default 1.0 meter USB cable, UVC-compliant, plug and play.Main Parameters
Product Name
2MP 1080P USB2.0 Camera Module
Product Code
WN-L2403K387X
Module Size
80*16mm
Image Sensor
1/3.02-Inch GC2083 CMOS Sensor
Max. Resolution
1920H*1080V
Pixel Size
2.7*2.7μm
Output Format
H.265, H.264, MJPEG, YUY2
Field of View
90°
Focus Mode
Fixed Focus
Image Color
Color
Shutter Mode
Electronic Rolling Shutter
Audio Input
Support
Output & Power Supply
High Speed USB2.0
Interface
5PIN 1.25mm Connector (MOLEX 532610571)
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
1920*1080
30FPS
1280*720
30FPS
640*480
30FPS
YUY2
1920*1080
5FPS
1280*720
10FPS
640*480
30FPS
Working Conditions
Working Voltage
DC 5V
Working Current
160mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
