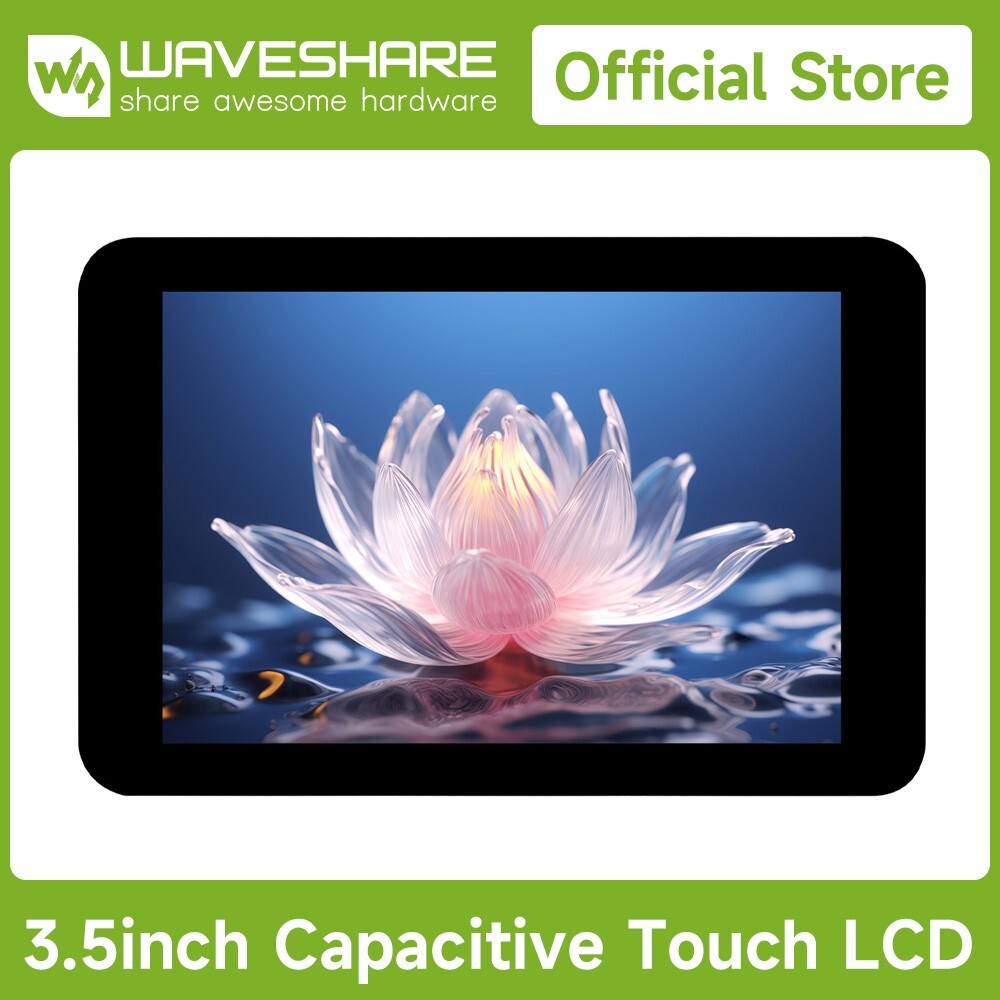

3.5inch Capacitive Touch Display Module, 320×480 Resolution, Embedded with ST7796S Display Driver and FT6336U Capacitive Touch Controller, IPS Display3.5inchCapacitive Touch LCD Module
Embedded ST7796S driver and FT6336U capacitive touch control chip
Comes with examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino
- Size3.5"
- Display Color262K
- Display PanelIPS
- Display DriverST7796S
- Display InterfaceSPI
- Touch DriverFT6336U
- Touch InterfaceI2C
Features
- 320×480 resolution, 262K colors, clear and colorful displaying effect
- High touch screen transmittance, fast response and long lifetime
- Embedded with ST7796S driver chip and FT6336U capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins
- Onboard TF card slot for storing more pictures, videos, music, etc.
- Adapting 15PIN connector and 18PIN FPC slot for connecting the LCD module to the host board
- Onboard voltage translator, compatible with 3.3V / 5V operating voltage
- Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino)
SpecificationsOperating Voltage3.3V / 5VResolution320 × 480 pixelsDisplay DriverST7796STouch DriverFT6336UDisplay Interface4-wire SPITouch InterfaceI2CDisplay PanelIPSTouch TypeCapacitivePixel Pitch0.051 × 0.153 (mm)Touch PointsTwo-point touchDisplay Size48.96 × 73.44 (mm)Module Size61.00 × 92.44 (mm)
3.5inch Touch Display
Embedded with ST7796S Driver Chip And FT6336U Capacitive Touch Control Chip
Onboard Voltage Translator
Compatible With 3.3V / 5V Operating voltage
Onboard TF Card Slot
For storing more pictures or files
Suitable For Multiple Programming Platforms
Comes With Demos And Manuals For Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino
More Convenient For Development And Integration, with High Expansibility
Raspberry Pi
Raspberry Pi Pico 2
ESP32
Arduino Boards
SPI and I2C Control Interfaces
Options For 15PIN Connector Or 18PIN FPC Slot For Connecting The LCD To The Host Board
PinDescription15PIN
Pin No.18PIN
Pin No.VCCPower (3.3V / 5V input)113V3Power (3.3V input)2NCGNDGround33MISOSPI MISO pin46MOSISPI MOSI pin55SCLKSPI CLK pin64SD_CSTF card chip selection, low active710LCD_CSLCD chip selection, low active89LCD_DCLCD data/command selection (high for data, low for command)97LCD_RSTLCD reset pin, low active108LCD_BLLCD backlight pin112TP_SDATouch panel data pin1214TP_SCLTouch panel clock pin1313TP_INTTouch panel interrupt pin1415TP_RSTTouch panel reset pin, low active1512
Hardware Connection
Connecting with Raspberry Pi 5
Connecting with ESP32-S3
* for reference only, theRaspberry Pi 5andESP32-S3 driver boardare NOT included, please check the Package Content for the detailed part list.
Outline dimensionsResources & Services
Package Content
Weight:0.051 kg
- 3.5inch Capacitive Touch LCD x1
- GH1.25 15Pin cable x1
12Selection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED connector0.85inch LCD ModuleIPS65K connector0.91inch OLED connector0.95inchRGBOLED(A)OLED65K LCD ModuleIPS65K connector0.96inchOLED(A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wireSPI, yellow section, 3/4 blue section*128×6421.70×11.203/4-wireSPI, OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wireSPI, OLED Module OLED Module RGB OLED ModuleOLED65K connector1.14inch LCD ModuleIPS65K connector1.27inch RGB OLED ModuleOLED262K connector1.28inch LCD ModuleIPS65K style="box-sizing: border-box; margin: 0px; padding: 0px;">Φ37.5PH2.0 connector1.28inch Touch LCDIPS
(with touch)65K colorful240×240Φ32.4mm4-wireSPI, I2CGC9A01, CST816S39.89×38.5
Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K OLED Module I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wireSPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch LCD ModuleIPS262K connector1.5inch LCD ModuleIPS262K connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wireSPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module I2CSH110738.5×44.5GH1.25 connector1.5inch RGB OLED ModuleOLED65K connector1.54inch LCD ModuleIPS65K connector1.54inch OLED I2CSSD130943.0×37.5GH1.25 connector1.54inch OLED Module I2CSSD130943.0×37.5GH1.25 connector1.69inch LCD ModuleIPS262K connector1.69inch Touch LCD ModuleIPS262K I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K connector1.83inch LCD ModuleIPS65K connector1.9inch LCD ModuleIPS262K connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wireSPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K connector2.4inch LCD ModuleTFT65K connector2.42inch OLED I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wireSPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wireSPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot
*Note: the 0.96inchOLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.
