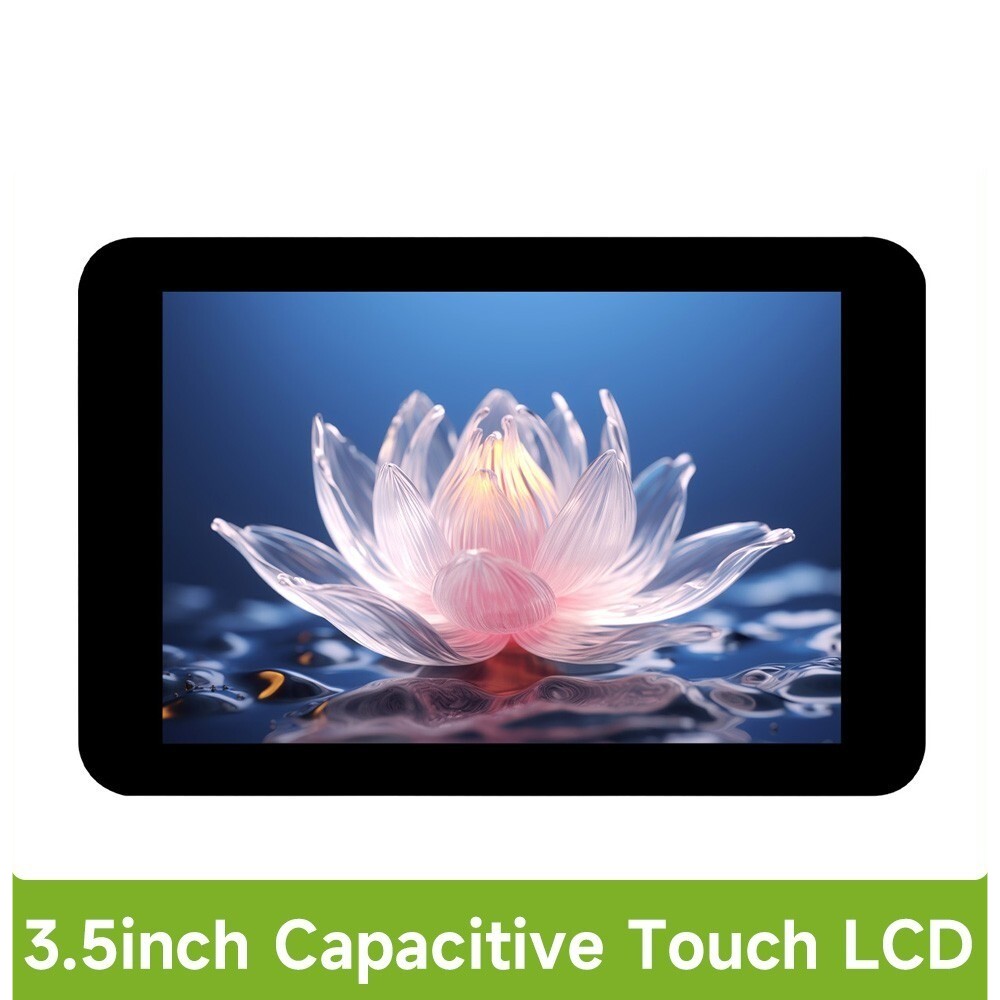

Waveshare 3.5inch Capacitive Touch Display Module 320×480 IPS for Raspberry Pi For Sale
|
 When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Description 3.5inch Capacitive Touch Display Module, 320×480 Resolution, Embedded with ST7796S Display Driver and FT6336U Capacitive Touch Controller, IPS Display 3.5inchCapacitive Touch LCD Module * for reference only, theRaspberry Pi 5andESP32-S3 driver boardare NOT included, please check the Package Content for the detailed part list.
Package Content
1 2 Selection Guide Part Number Type Color Resolution Display Size (mm×mm) Interfaces Driver Dimension (mm×mm) Pinheader 0.49inch OLED Module OLED White 64×32 14.40×11.50 I2C SSD1315 15.5×13.0 MX1.25 connector 0.85inch LCD Module IPS 65K colorful 128×128 15.21×15.21 4-wireSPI GC9107 19.0×22.5 GH1.25 connector 0.91inch OLED Module OLED White 128×32 22.38×5.58 I2C SSD1306 36.0×12.5 PH2.0 connector 0.95inchRGBOLED(A) OLED 65K colorful 96×64 20.14×13.42 4-wireSPI SSD1331 31.7×37.0 angled/horizontal 0.95inchRGBOLED(B) OLED 65K colorful 96×64 20.14×13.42 4-wireSPI SSD1331 31.7×37.0 straight/vertical 0.96inch LCD Module IPS 65K colorful 160×80 21.70×10.80 4-wireSPI ST7735S 32.5×26.0 PH2.0 connector 0.96inchOLED(A) OLED 1/4 yellow section, 3/4 blue section* 128×64 21.70×11.20 3/4-wireSPI, I2C SSD1306 33.0×33.5 angled/horizontal 0.96inchOLED(B) OLED 1/4 yellow section, 3/4 blue section* 128×64 21.70×11.20 3/4-wireSPI, I2C SSD1306 33.0×33.5 straight/vertical 0.96inch OLED Module (C) OLED 1/4 yellow section, 3/4 blue section* 128×64 21.74×11.18 4-wireSPI, I2C SSD1315 26.0×26.0 straight/vertical 0.96inch OLED Module (D) OLED White 128×64 21.74×11.18 4-wireSPI, I2C SSD1315 26.0×26.0 straight/vertical 0.96inch OLED Module (E) OLED Blue 128×64 21.74×11.18 4-wireSPI, I2C SSD1315 26.0×26.0 straight/vertical 0.96inch RGB OLED Module OLED 65K colorful 64×128 10.862×21.736 3/4-wireSPI SSD1357 32.5×26.0 GH1.25 connector 1.14inch LCD Module IPS 65K colorful 240×135 24.91×14.86 4-wireSPI ST7789 35.0×32.0 PH2.0 connector 1.27inch RGB OLED Module OLED 262K colorful 128×96 25.708×19.28 3/4-wireSPI SSD1351 42.2×29.0 GH1.25 connector 1.28inch LCD Module IPS 65K colorful 240×240 Φ32.4mm 4-wireSPI GC9A01 40.4×37.5
*Note: the 0.96inchOLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.
|
|
|
|
