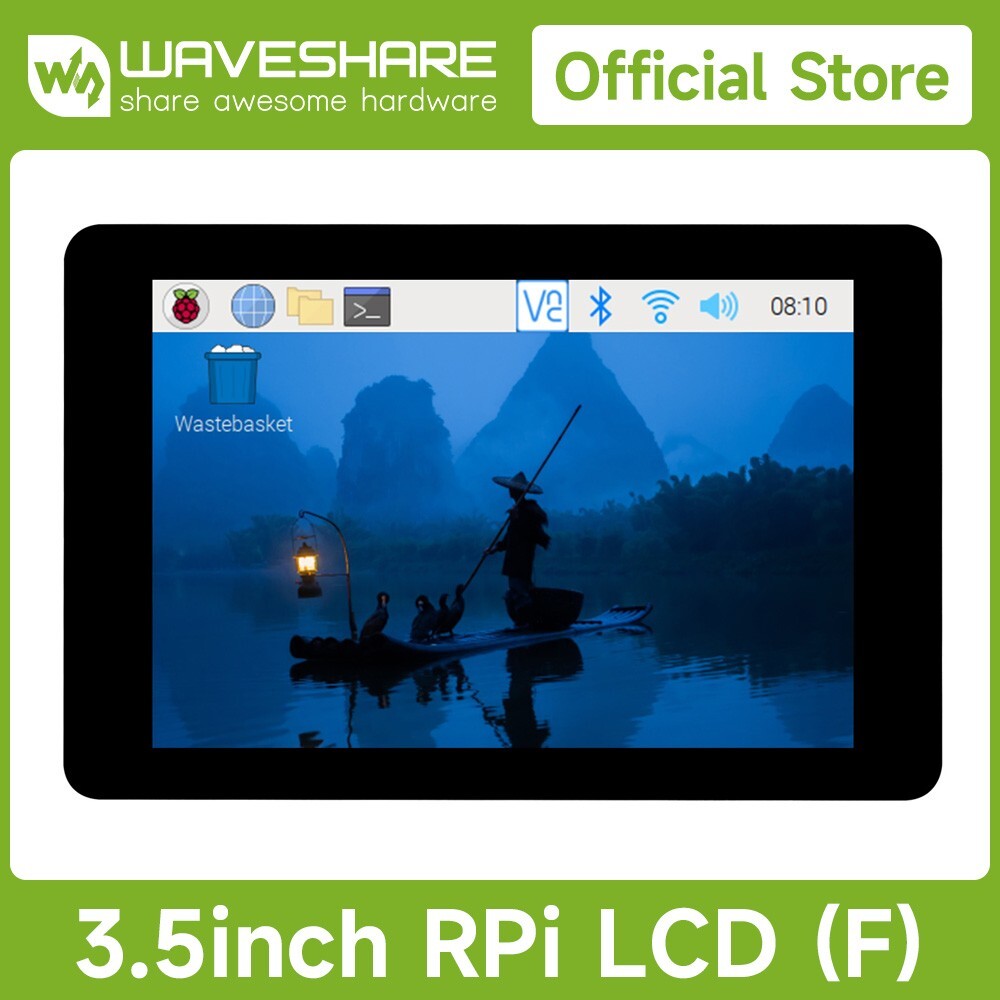

Waveshare 3.5inch Capacitive Touch Display for Raspberry Pi/Pico IPS 320×480

Price: CN $27.51

3.5inch Capacitive Touch Display (F) for Raspberry Pi, IPS Panel, 320×480 Resolution, 5-point Touch, Immersion Gold Process, Toughened Glass Panel3.5inchCapacitive Touch Displayfor Raspberry Pi

Embedded ST7796S driver and GT911 capacitive touch control chip

Comes with examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino

Size3.5"
Display Color262K
Display PanelIPS
Display DriverST7796S
Display InterfaceSPI
Touch DriverGT911
Touch InterfaceI2C
Touch TypeCapacitive
Touch Points5-Point
Viewing Angle170°
Touch PanelToughened Glass
Certification 1CE
Certification 2ROHS
PCB ProcessImmersion Gold

The display orientation is portrait by default, 320×480 resolution (H×V). Change the software config for landscape display.Features at a glance

262K color display with 320 × 480 resolution for excellent visual effects
High touch screen transmittance, fast response, sensitive touch, and long lifetime
Embedded with ST7796S driver chip and GT911 capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins
Supports Pigo pin communication and GH1.25 13PIN cable connection
Adopts Immersion Gold process, nice looking, with better durability
Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)

SpecificationsOperating Voltage5VLogic level3.3VDisplay DriverST7796STouch DriverGT911Display Interface4-wire SPITouch InterfaceI2CDisplay PanelIPSDisplay size3.5inchTouch TypeCapacitiveTouch Points5-point touchDisplay Size49.36 × 73.84mmTouch panel Size61.00 × 92.44mm
3.5inch Capacitive Touch Display

Embedded with ST7796S Driver Chip And GT911 Capacitive Touch Control Chip

smooth and stable display

Highly compatible with Raspberry Pi desktop OS, supports smooth and stable operation

IPS Display Panel

Excellent Display Performance, 262K color, wide viewing angle

High Refresh Rate

supports 60Hz high Refresh Rate for a smoother operating experience

Suitable For Multiple Programming Platforms

Comes With Demos And Manuals For Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino
More Convenient For Development And Integration, with High Expansibility

Raspberry Pi
Raspberry Pi Pico
ESP32
Arduino

SPI and I2C Control Interfaces

Options For GH1.25 13PIN Connector Or Pigo Pin For Connecting The LCD To The Host Board

PinDescription13PIN
Pin No.TP_RSTTouch panel Reset pin, low active1TP_INTTouch panel Interrupt pin2TP_SCLTouch panel Clock pin3TP_SDATouch panel Data pin4LCD_BLLCD Backlight pin5LCD_RSTLCD Reset pin, low active6LCD_DCLCD Data/Command selection (high for data, low for command)7LCD_CSLCD Chip Selection, low active8SCLKSPI CLK pin9MOSISPI MOSI pin10MISOSPI MISO pin11GNDGround12VCC5V Power input13
